Error analysis and correction of circular grating angle measurement system

doi: 10.5768/JAO201940.0301007

ZHANG Wenying^{1, 2
,},
ZHU Haoran³

1.
Institute for Interdisciplinary Quantum Information Technology, Jilin Engineering Normal University, Changchun 130052, China
2.
Jilin Engineering Laboratory for Quantum Information Technology, Changchun 130052, China
3.
School of Electronics and Information Engineering, Changchun University of Science and Technology, Changchun 130022, China

Received Date: 2018-12-03
Rev Recd Date: 2018-12-27
Publish Date: 2019-05-01

Abstract

Abstract

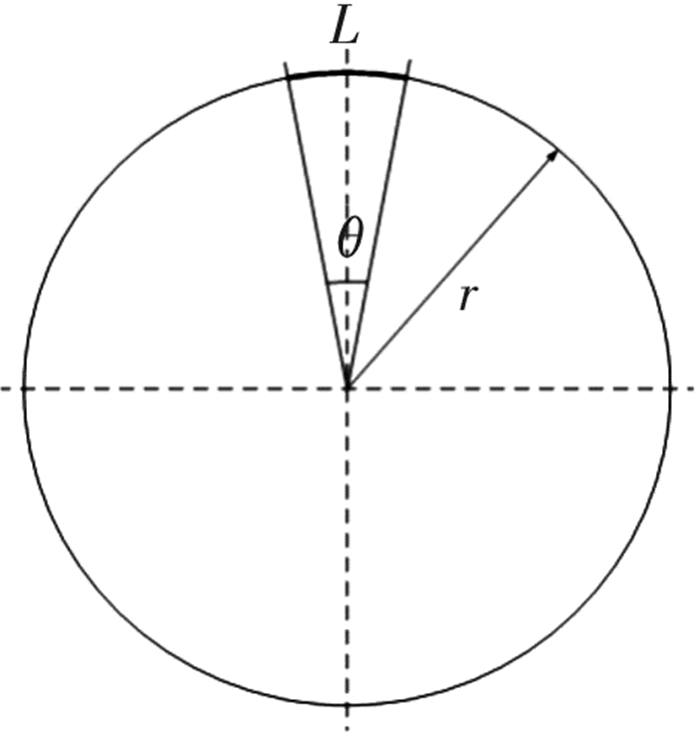

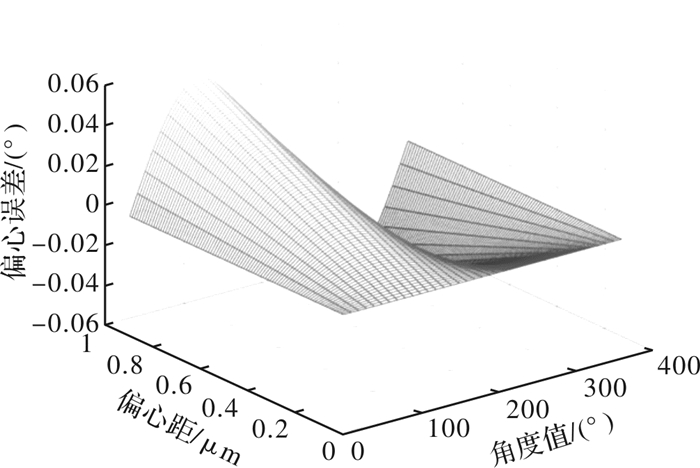

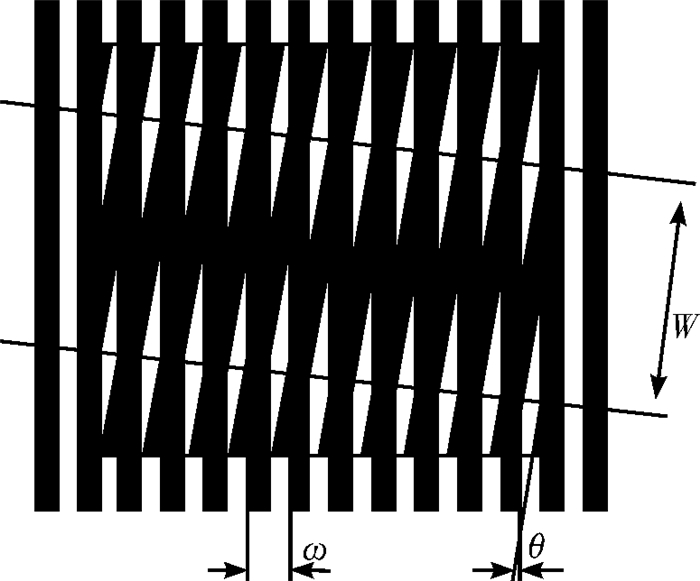

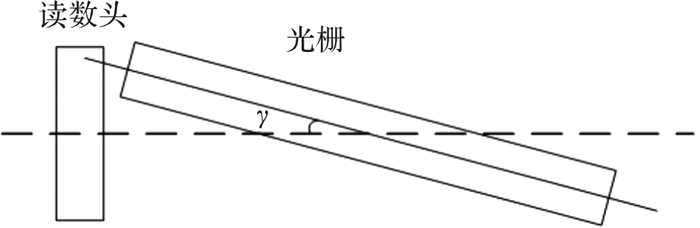

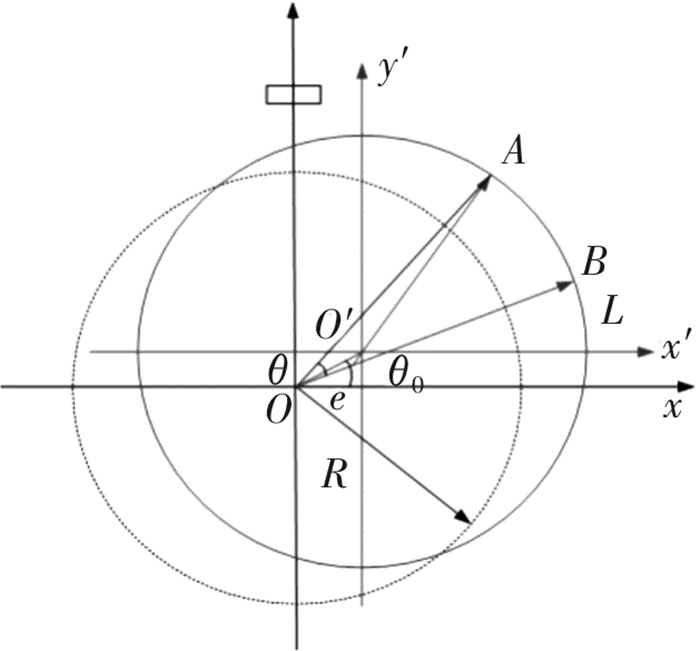

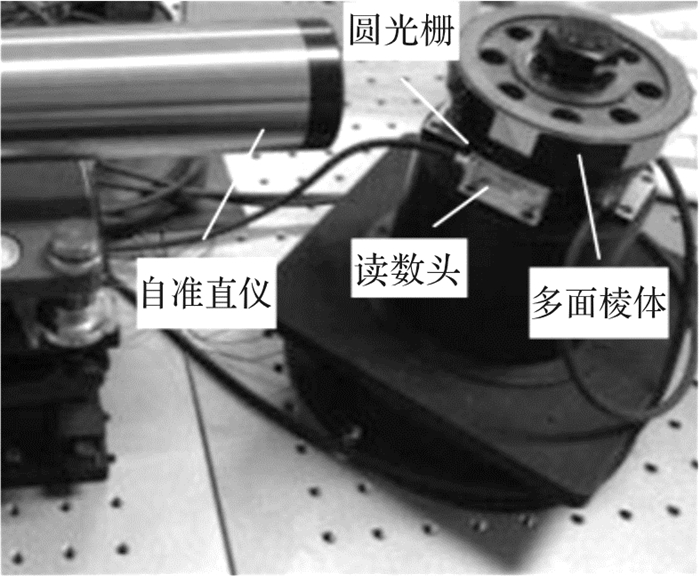

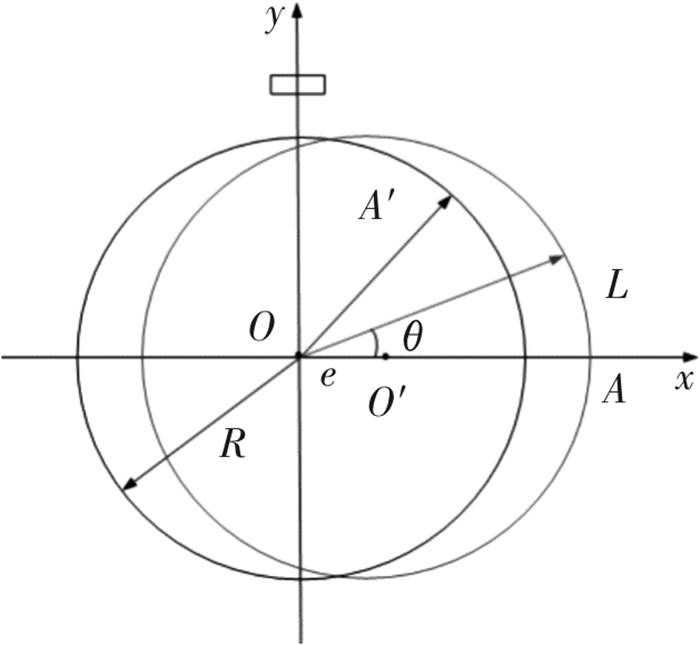

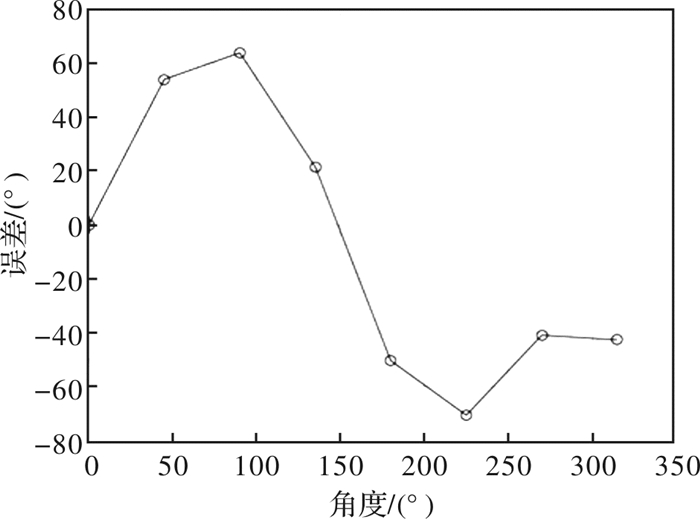

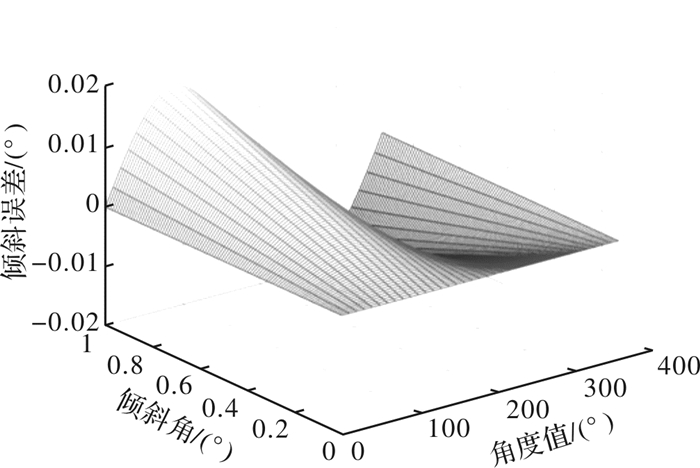

In order to improve the measurement accuracy of the angle measuring system, based on the characteristics and form of the error, the corresponding mathematical models of the scoring error, photoelectric signal error, eccentricity error, tilt error and the error caused by the deformation in the angle measuring system were established from the harmonic angle aspect, and the eccentricity error and tilt error were analyzed. Furthermore, a metal circular grating angle measuring system was built, and the error in the system was analyzed and corrected. The experimental results show that the angle measurement error of the angle measuring system is 134.2″, and the corrected error is 32.23″. The error analysis of the circular grating angle measurement system provides a theoretical basis for the subsequent error compensation.
- circular grating,
- angle measuring system,
- eccentricity error,
- error analysis

FullText(HTML)

References(15)

References

WOFFINDEN D C, GELLER D K. Optimal orbital rendezvous maneuvering for angles-only navigation[J]. Journal of Guidance Control & Dynamics, 2012, 32(4):1382-1387. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=CC0214941268

D'AMICO S, ARDAENS J S, GAIAS G, et al. Noncooperative rendezvous using angles-only optical navigation: system design and flight results[J]. Journal of Guidance Control & Dynamics, 2013, 36(36):1576-1595. http://d.old.wanfangdata.com.cn/NSTLQK/NSTL_QKJJ0232136038/

李海霞, 张嵘, 韩丰田.感应同步器测角系统误差测试及补偿[J].清华大学学报(自然科学版), 2016, 56:(6):611-616. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=qhdxxb201606008

LI Haixia, ZHANG Rong, HAN Fengtian.Errortesting and compensation of an inductosyn-based angular measurement system[J]. Journal of Tsinghua Univisity(Sci.& Technol.), 2016, 56(6):611-616. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=qhdxxb201606008

GELLER D K, PEREZ A. Initial relative orbit determination for close-in proximity operations[J]. Journal of Guidance Control Dynamics, 2015, 38(9):1-9. http://cn.bing.com/academic/profile?id=d68d9c53601626c83b9c21d3debd75df&encoded=0&v=paper_preview&mkt=zh-cn

高贯斌, 王文, 林铿, 等.圆光栅角度传感器的误差补偿及参数辨识[J].光学精密工程, 2010, 18(8):1766-1762. http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201008011

GAO Guanbin, WANG Wen, LING Jian, etal.Error compensation and parameter identification of circular grating angle sensors[J]. Optics and Precision Engineering, 2010, 18(8):1766-1762. http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201008011

杨贵杰, 崔乃政, 孙力, 等.一体化跟踪型测角系统的误差分析[J].哈尔滨:哈尔滨工业大学学报, 2003, 35(6): 703-706. http://d.old.wanfangdata.com.cn/Periodical/hebgydxxb200306019

YANG Guijie, CUI Naizheng, SUN Li, et al.Error analysis for integrated tracking angle measuring system[J]. Journal of Harbin Institute of Technology, 2003, 35(6): 703-706. http://d.old.wanfangdata.com.cn/Periodical/hebgydxxb200306019

NIREI M, YANANOTO Y, KITAZAWA K, et al. Angular error analysis of an 8X- VR revolver with an eccentric rotor[J]. Journal of Magnetism and Magnetic Materials, 2002, 24(2/3/4/5):1202-1205.

朱帆, 吴易明, 刘长春.四读头法消除码盘偏心和振动对叠栅条纹相位测量的影响[J].光学学报, 2011, 31(4):0412008 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gxxb201104023

ZHU Fan, WU Yiming, LIU Changchun. Eliminating influence of grating encoder's eccentricity and vibration to Moiré fringes signal by four reading head[J]. Acta Optica Sinica, 2011, 31(4):0412008. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gxxb201104023

王显军.光电轴角编码器细分信号误差及精度分析[J].光学精密工程, 2012, 20(2):379-386. http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201202022

WANG Xianjun.Error and precision analysis of photoelectric angle encoder subdivision signal[J]. Optics and Precision Engineering, 2012, 20(2):379-386. http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201202022

高忠华.光栅角位移传感器自标定与误差修正方法及关键技术研究[D].合肥: 合肥工业大学, 2014: 20-50. http://cdmd.cnki.com.cn/Article/CDMD-10359-1015573990.htm

GAO Zhonghua.Study on self-calibration and error correction method and key technology of time-grating angular displacement sensor[C]. Hefei: Hefei University of Technology, 2014: 20-50. http://cdmd.cnki.com.cn/Article/CDMD-10359-1015573990.htm

王文, 林铿, 高贯斌, 等.关节臂式坐标测量机角度传感器偏心参数辨识[J].光学·精密工程, 2010, 18(1):135-141. http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201001019

WANG Wen, LIN Keng, GAO Guanbin, et al.Eccentricity parameter identification of angle sensors for articulated arm CMMs[J]. Optics and Precision Engineering, 2010, 18(1):135-141. http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201001019

RISTIC B, ARULAMPALAM S, MUSSO C. The influence of communication bandwidth on target tracking with angle only measurements from two platforms[J]. Signal Processing, 2001, 81(9):1801-1811. doi: 10.1016/S0165-1684(01)00059-7

GECK R D, FRICKE A, ELSTER C. Calicration of angle encoders using transfer functions[J]. Meas.Sci.Technology, 2006, 17:2811-2818. doi: 10.1088/0957-0233/17/10/036

赵婷, 陈志同, 张云, 等.基于蓝光扫描仪的高光面小圆角结构测量方法[J].应用光学, 2019, 40(1):86-92. doi: 10.5768/JAO201940.0103002

ZHAO Ting, CHEN Zhitong, ZHANG Yun, et al.Measurement method of high reflective surface and small fillet structure based on blue light scanner[J]. Journal of Applied Optics, 2019, V40(1): 86-92. doi: 10.5768/JAO201940.0103002

张建隆, 潘鑫, 贺磊, 等.全视角高精度三维测量仪光学系统误差分析研究[J].应用光学, 2018, 39(3):392-399. doi: 10.5768/JAO201839.0303004

ZHANG Jianlong, PAN Xin, HE Lei, et al.Error analysis of optical system for full-view and high-precision three-dimensional measuring instrument[J]. Journal of Applied Optics, 2018, 39(3): 392-399. doi: 10.5768/JAO201839.0303004
