四象限探测器光斑检测原理及其研究进展

李征 许昊宇 梁静远 张颖 柯熙政

李征, 许昊宇, 梁静远, 张颖, 柯熙政. 四象限探测器光斑检测原理及其研究进展[J]. 应用光学, 2023, 44(5): 927-942. doi: 10.5768/JAO202344.0509001
引用本文: 李征, 许昊宇, 梁静远, 张颖, 柯熙政. 四象限探测器光斑检测原理及其研究进展[J]. 应用光学, 2023, 44(5): 927-942. doi: 10.5768/JAO202344.0509001
LI Zheng, XU Haoyu, LIANG Jingyuan, ZHANG Ying, KE Xizheng. Principle and research progress of four-quadrant detector spot detection[J]. Journal of Applied Optics, 2023, 44(5): 927-942. doi: 10.5768/JAO202344.0509001
Citation: LI Zheng, XU Haoyu, LIANG Jingyuan, ZHANG Ying, KE Xizheng. Principle and research progress of four-quadrant detector spot detection[J]. Journal of Applied Optics, 2023, 44(5): 927-942. doi: 10.5768/JAO202344.0509001

四象限探测器光斑检测原理及其研究进展

doi: 10.5768/JAO202344.0509001
基金项目: 陕西省教育厅科研计划项目(18JK0341);陕西省重点产业创新项目(2017ZDCXL-GY-06-01);西安市科技计划项目(2020KJRC0083)
详细信息
    作者简介:

    李征(1979—),女,硕士,讲师,主要从事现代通信技术研究。E-mail:lixx-123@xaut.edu.cn

    通讯作者:

    柯熙政(1962—),男,博士,二级教授,主要从事无线光通信研究。E-mail:xzke@263.net

  • 中图分类号: TN247;TN249

Principle and research progress of four-quadrant detector spot detection

  • 摘要: 光斑检测技术在现代科学研究与应用中扮演着重要角色,四象限探测器由于其具有探测灵敏度高、信号处理简单和抗干扰能力强等优点,在光斑检测技术中得到了广泛的应用,是捕获、跟踪和瞄准系统中的关键器件。首先介绍了光斑检测中常用的光斑模型和四象限探测器检测光斑原理,然后分析了国内外在四象限探测器检测光斑方面的研究成果,以及影响四象限探测器检测光斑精度的因素和常用的光斑检测算法,同时介绍了四象限探测器的光斑检测系统,包括光束对准检测系统、四象限探测器跟踪通信复合系统和微纳激光通信系统。最后,展望了光斑检测技术的发展前景。

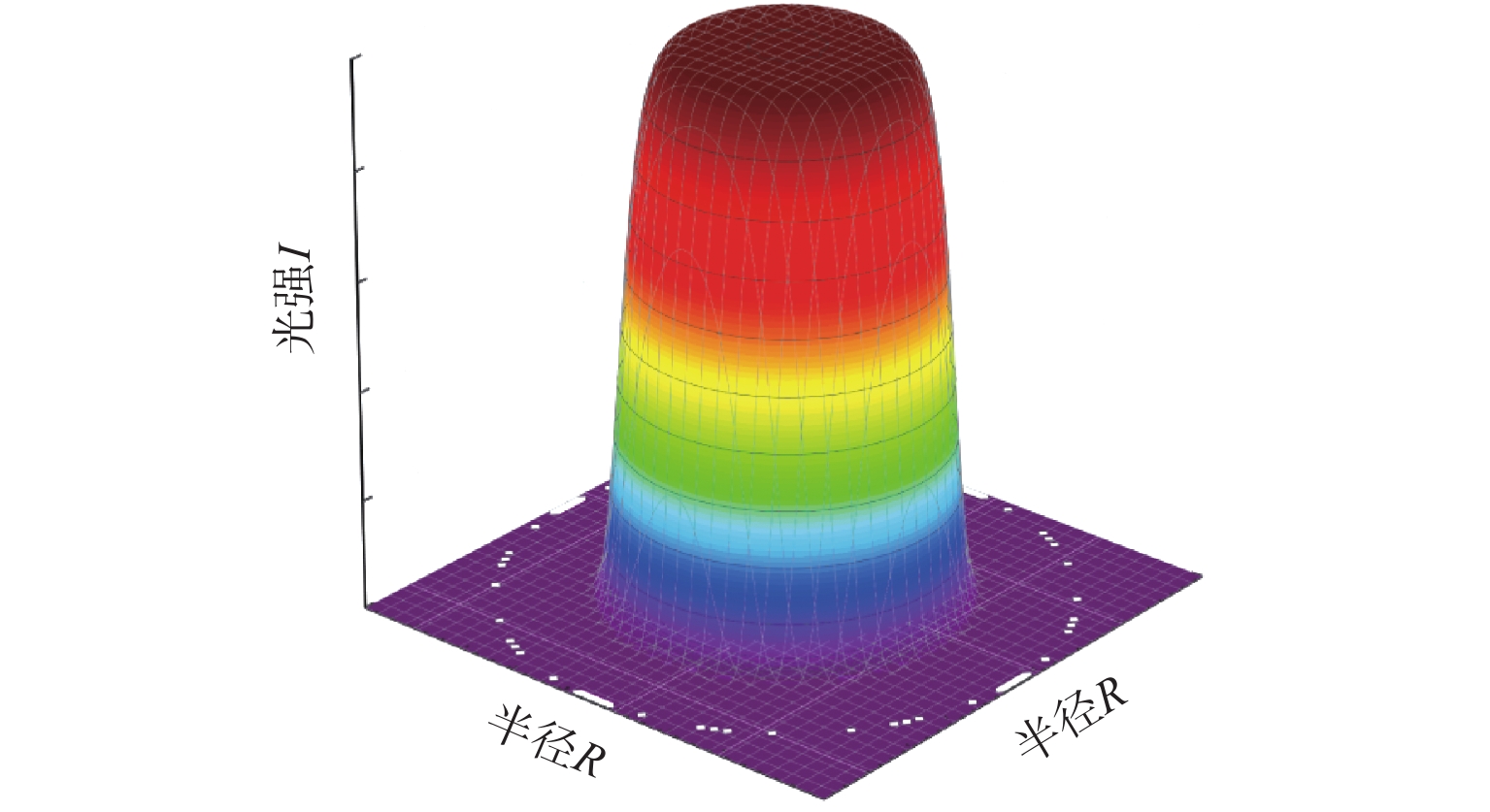

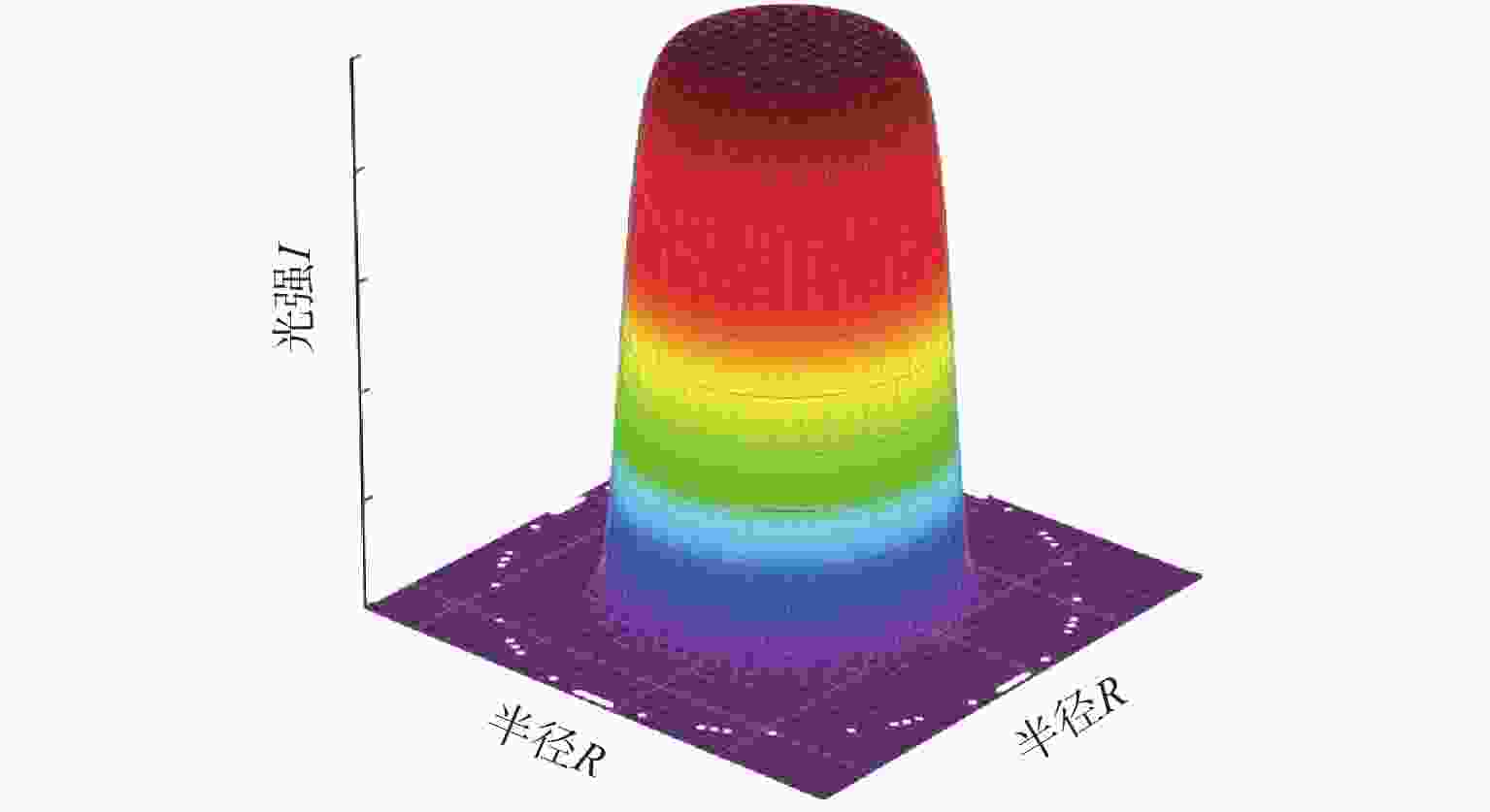

  • 图  1  均匀分布的圆形光斑

    Fig.  1  Uniformly-distributed circular light spot

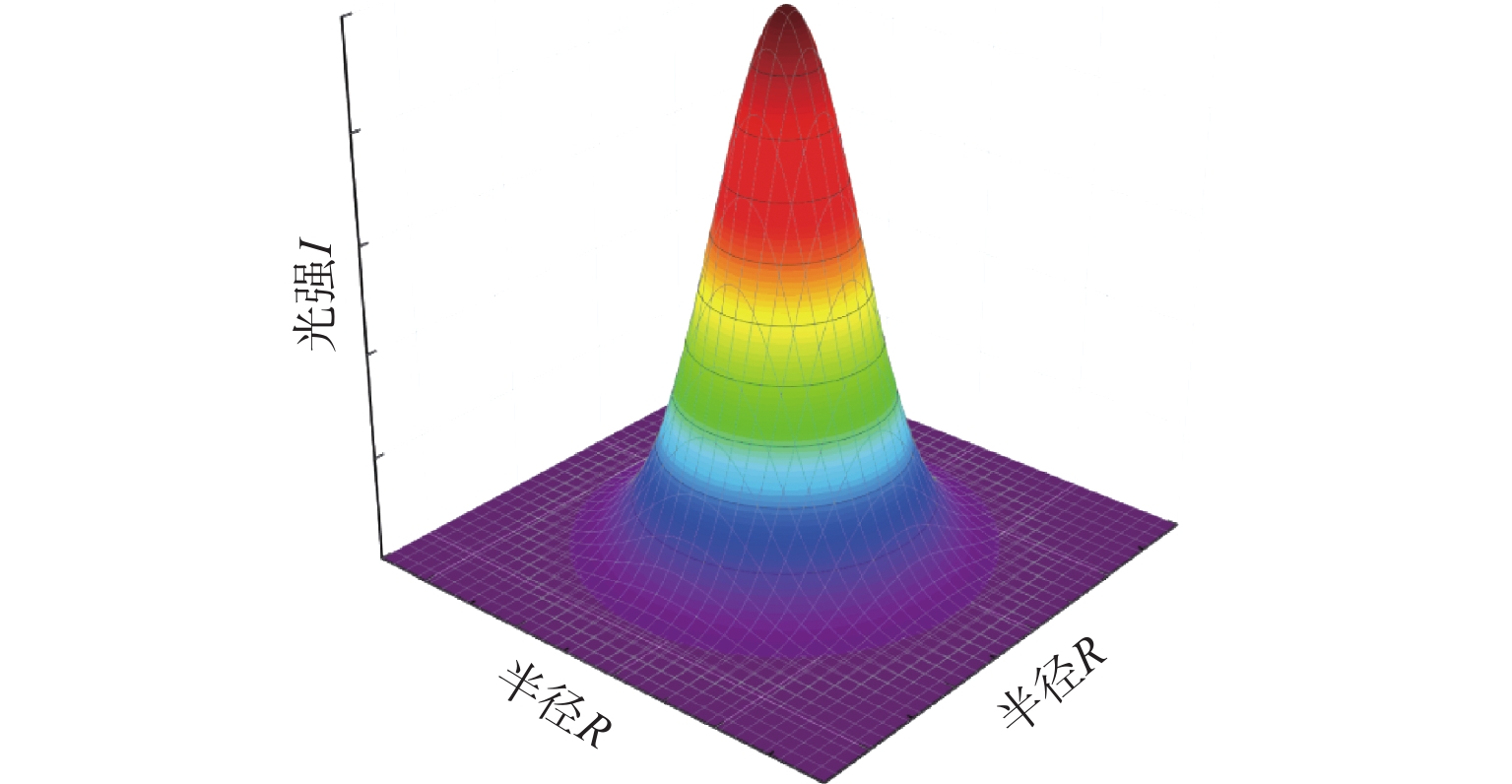

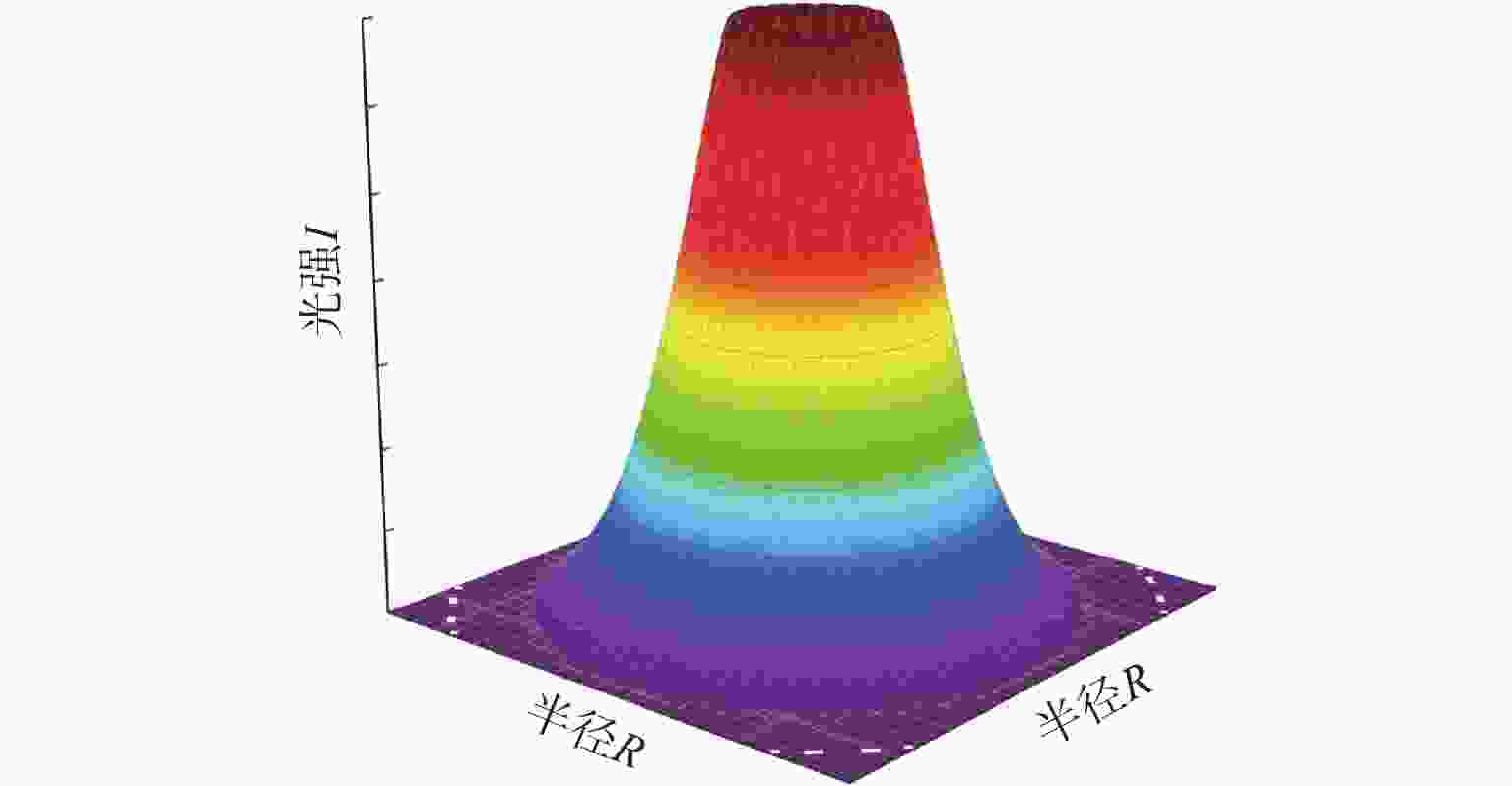

    图  2  高斯分布的圆形光斑

    Fig.  2  Gaussian-distributed circular light spot

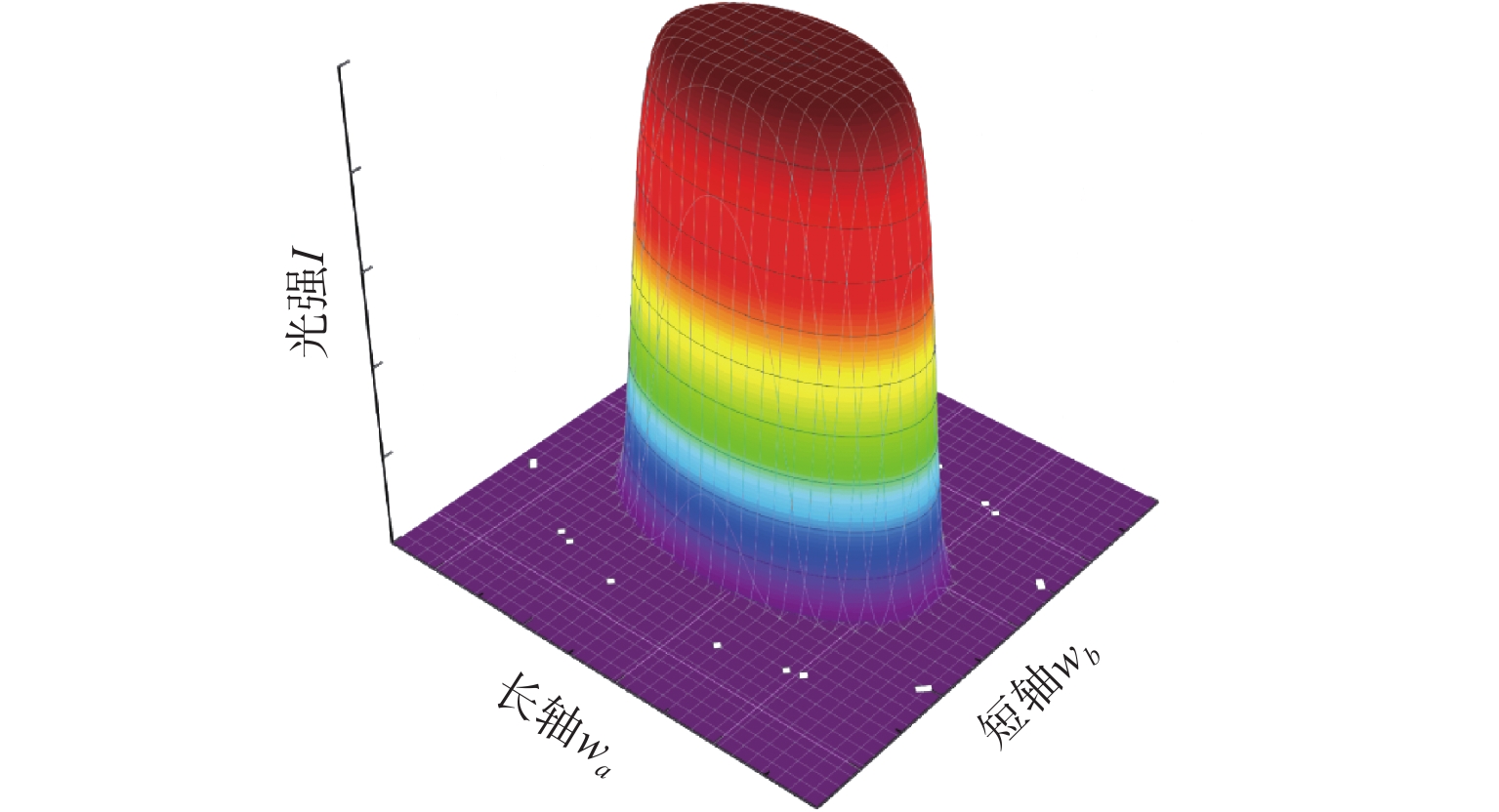

    图  3  均匀分布的椭圆光斑

    Fig.  3  Uniformly-distributed elliptical light spot

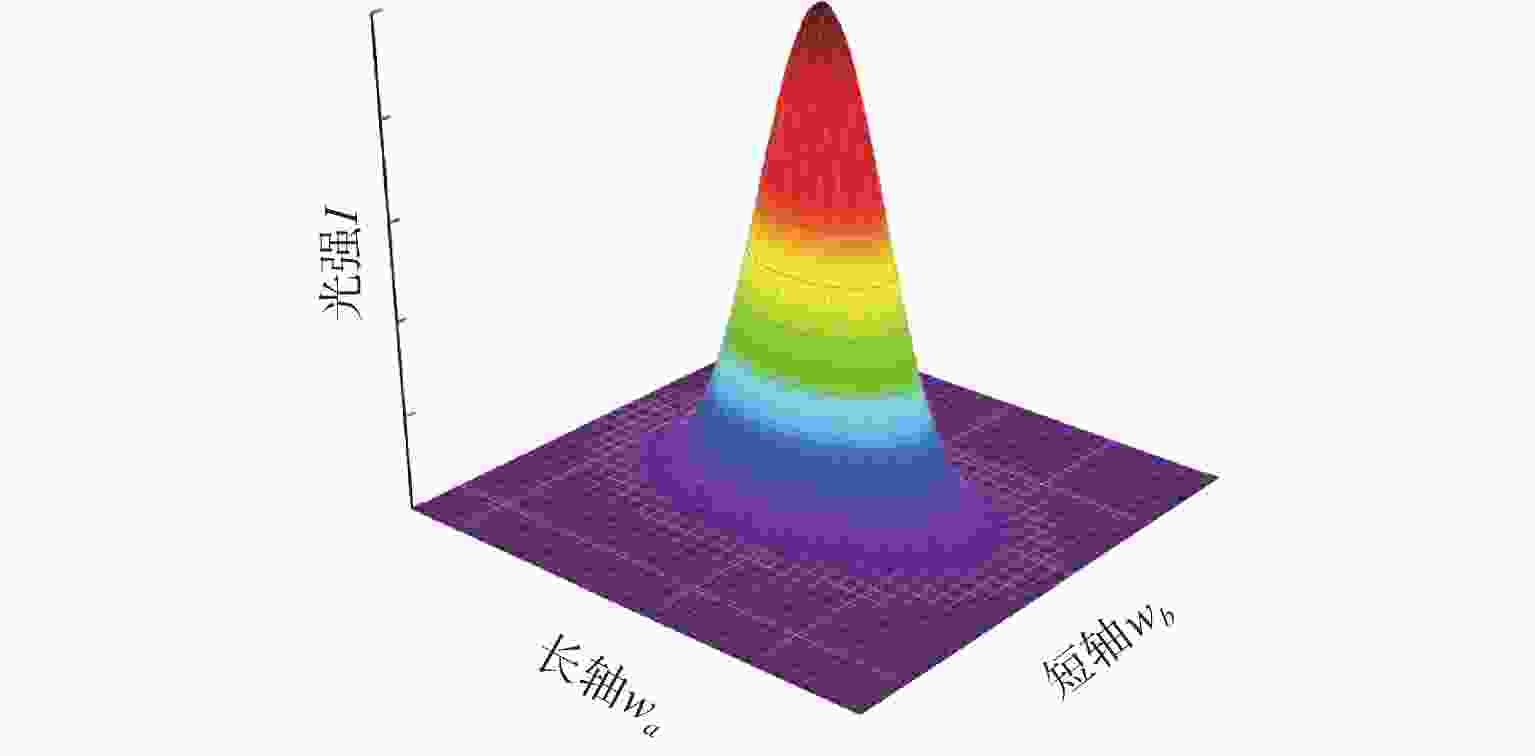

    图  4  高斯分布的椭圆光斑

    Fig.  4  Gaussian-distributed elliptical light spot

    图  5  高斯分布的环形光斑

    Fig.  5  Gaussian-distributed ring light spots

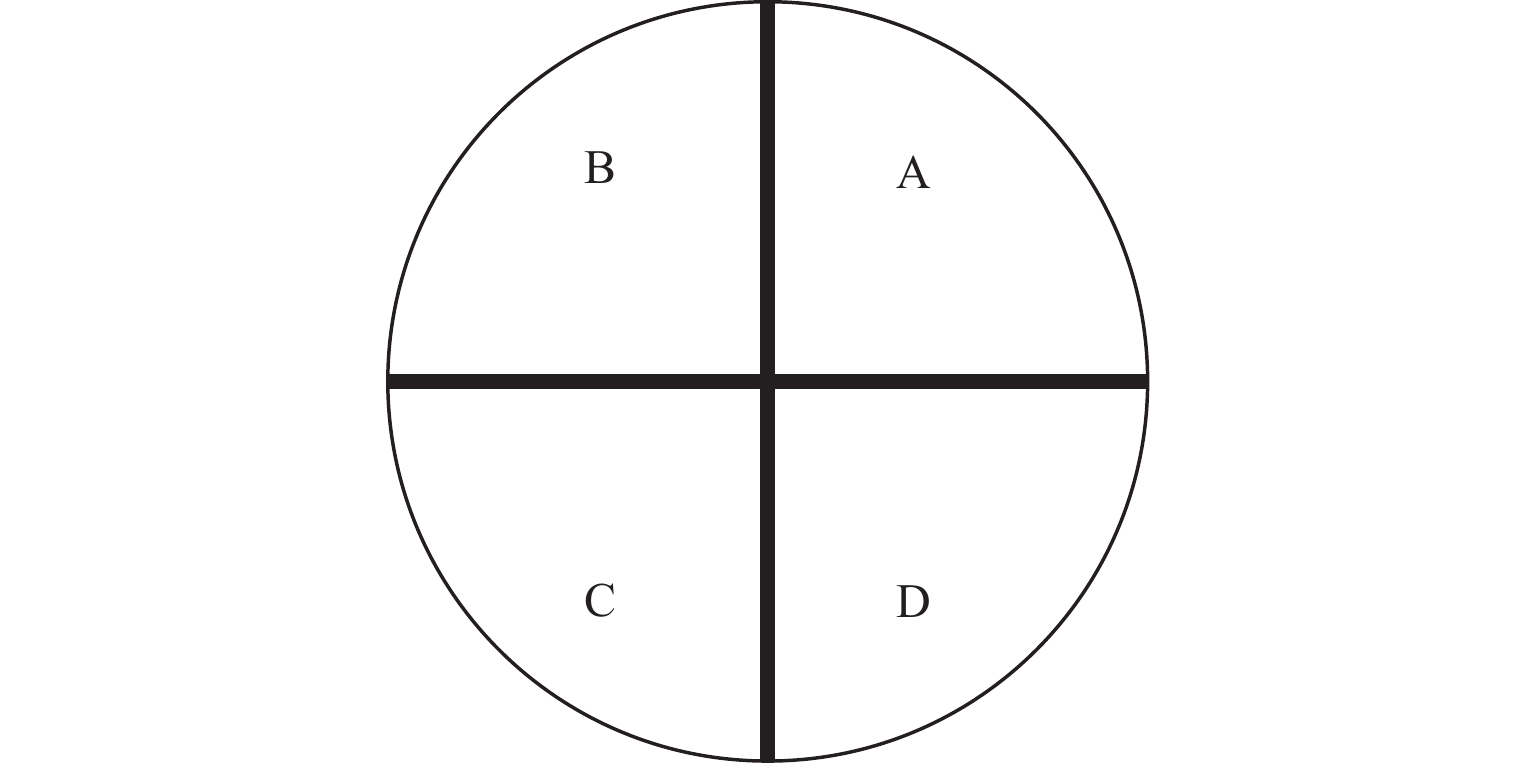

    图  6  QD示意图

    Fig.  6  Schematic diagram of QD

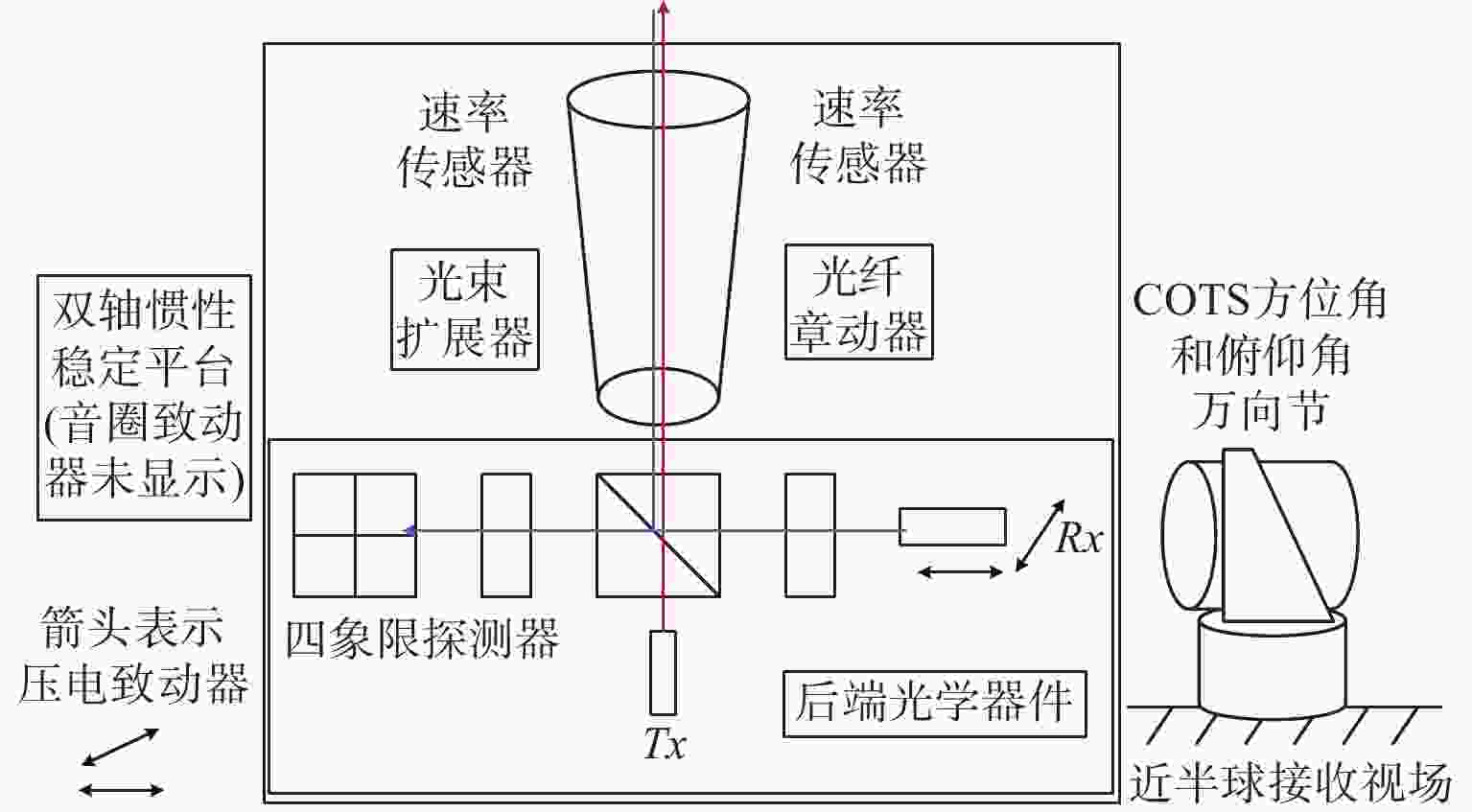

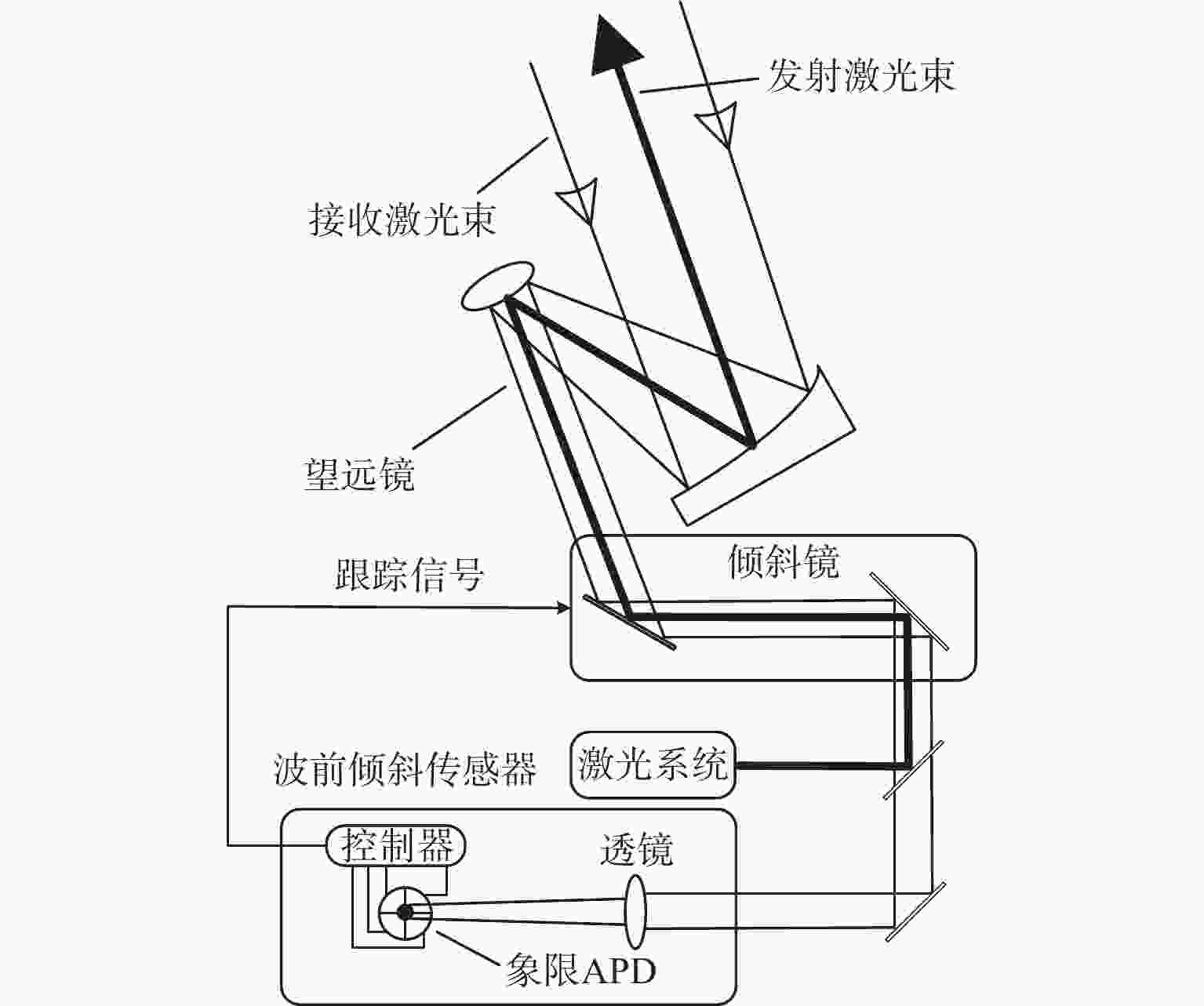

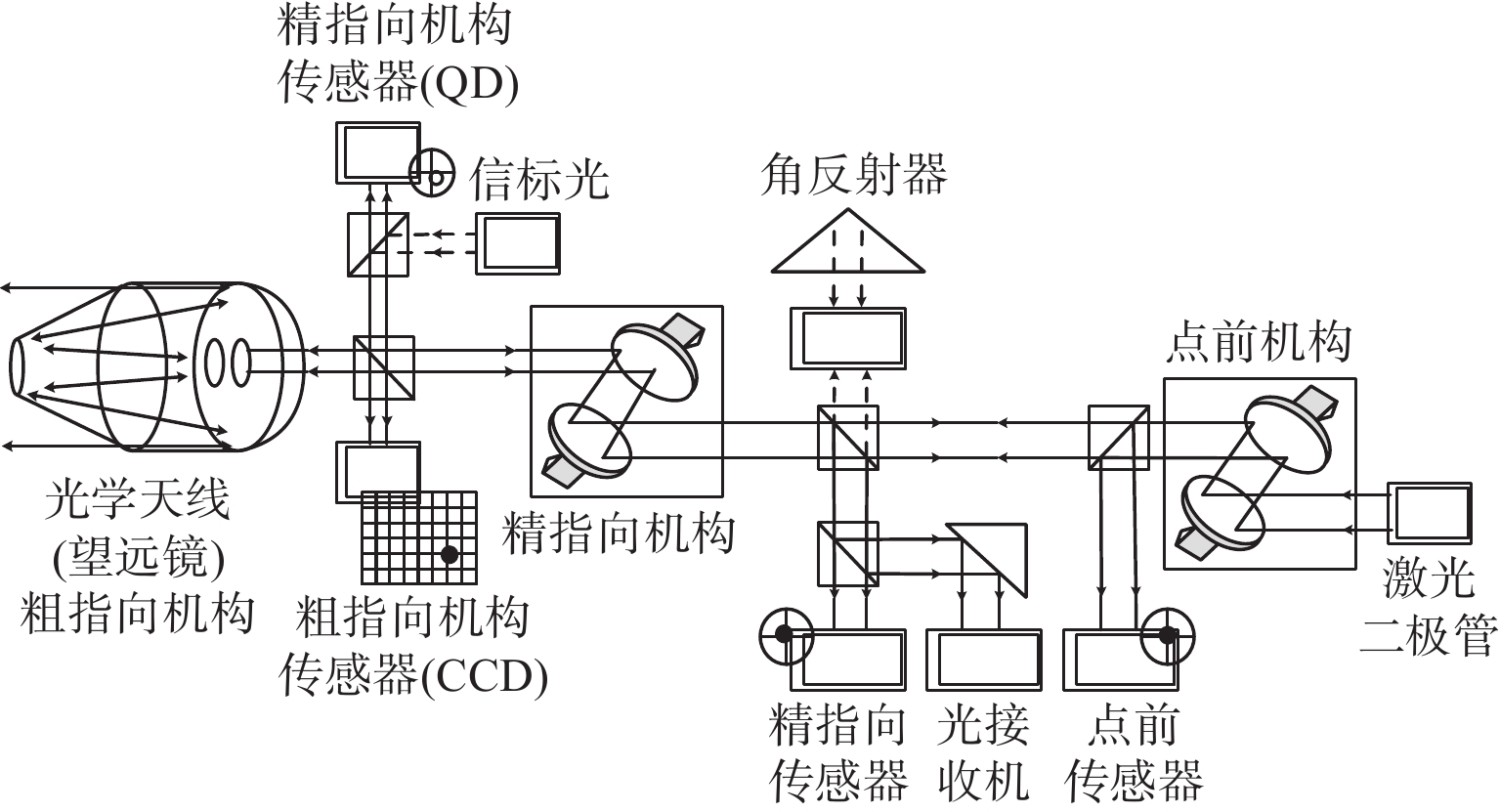

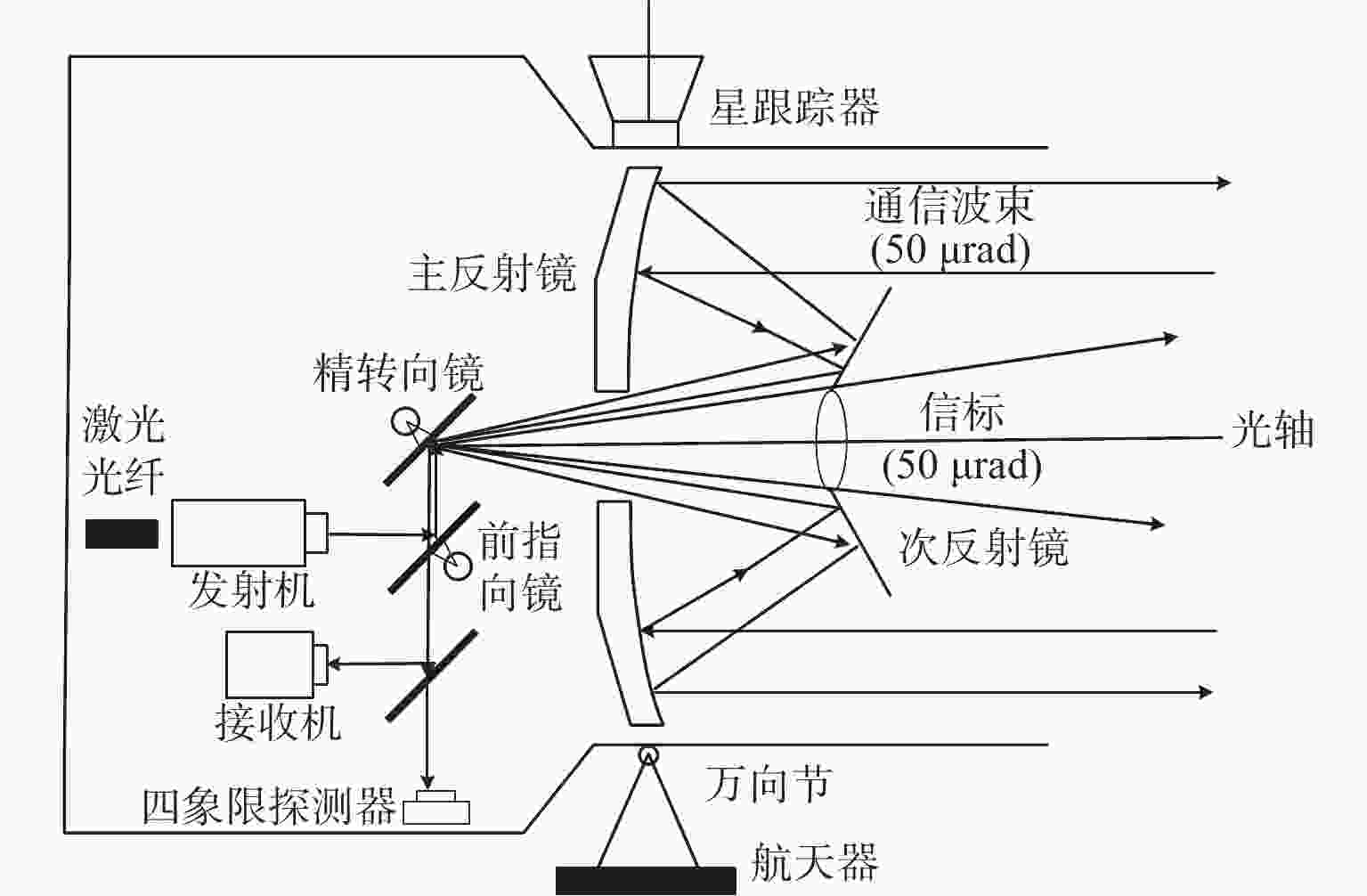

    图  7  LUCE终端的内部结构示意图[17]

    Fig.  7  Schematic diagram of internal structure of LUCE terminal

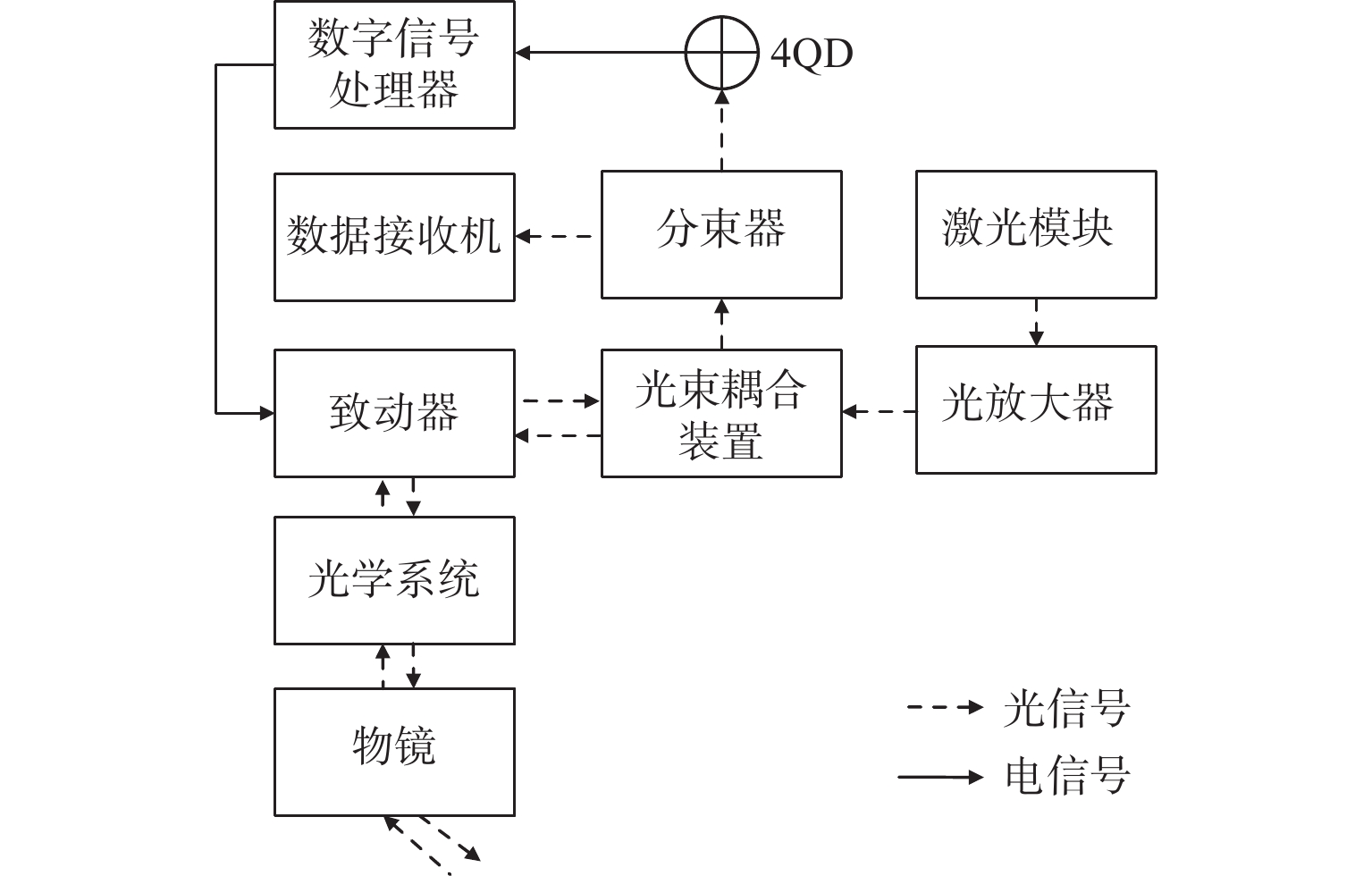

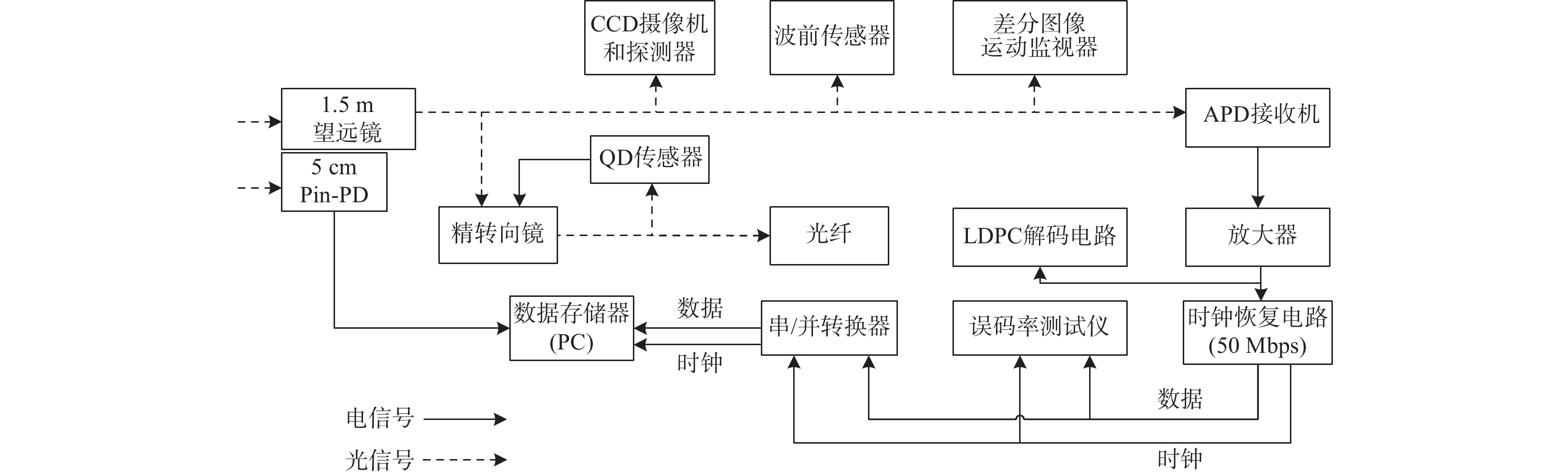

    图  8  LCE原理框图[18]

    Fig.  8  Schematic block diagram of LCE

    图  9  BLISL系统结构图[19]

    Fig.  9  Structure diagram of BLISL system

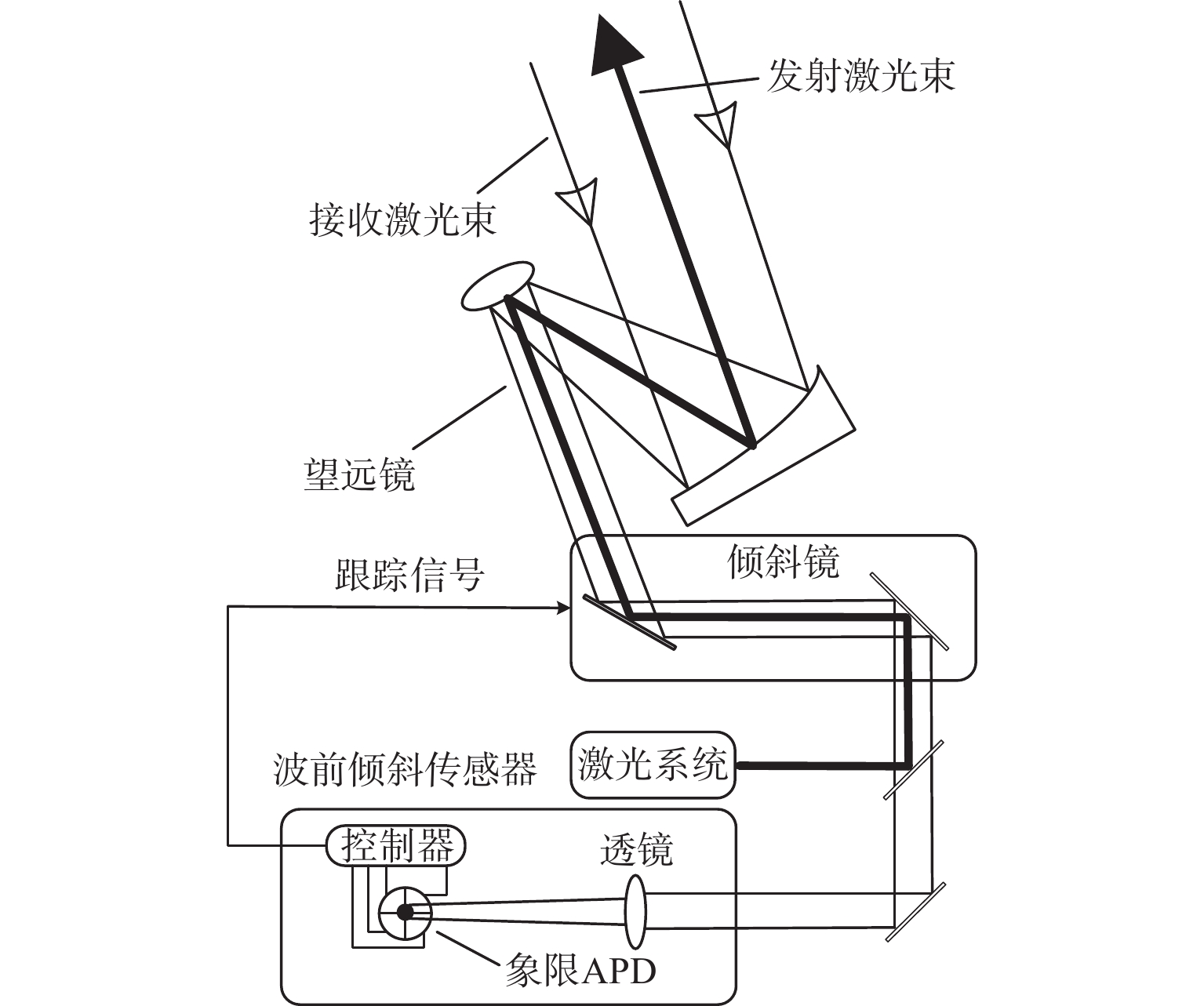

    图  10  基于象限APD的激光跟踪系统示意图[20]

    Fig.  10  Schematic diagram of laser tracking system based on quadrant APD

    图  11  KODEN接收机示意图[21]

    Fig.  11  Schematic diagram of KODEN receiver

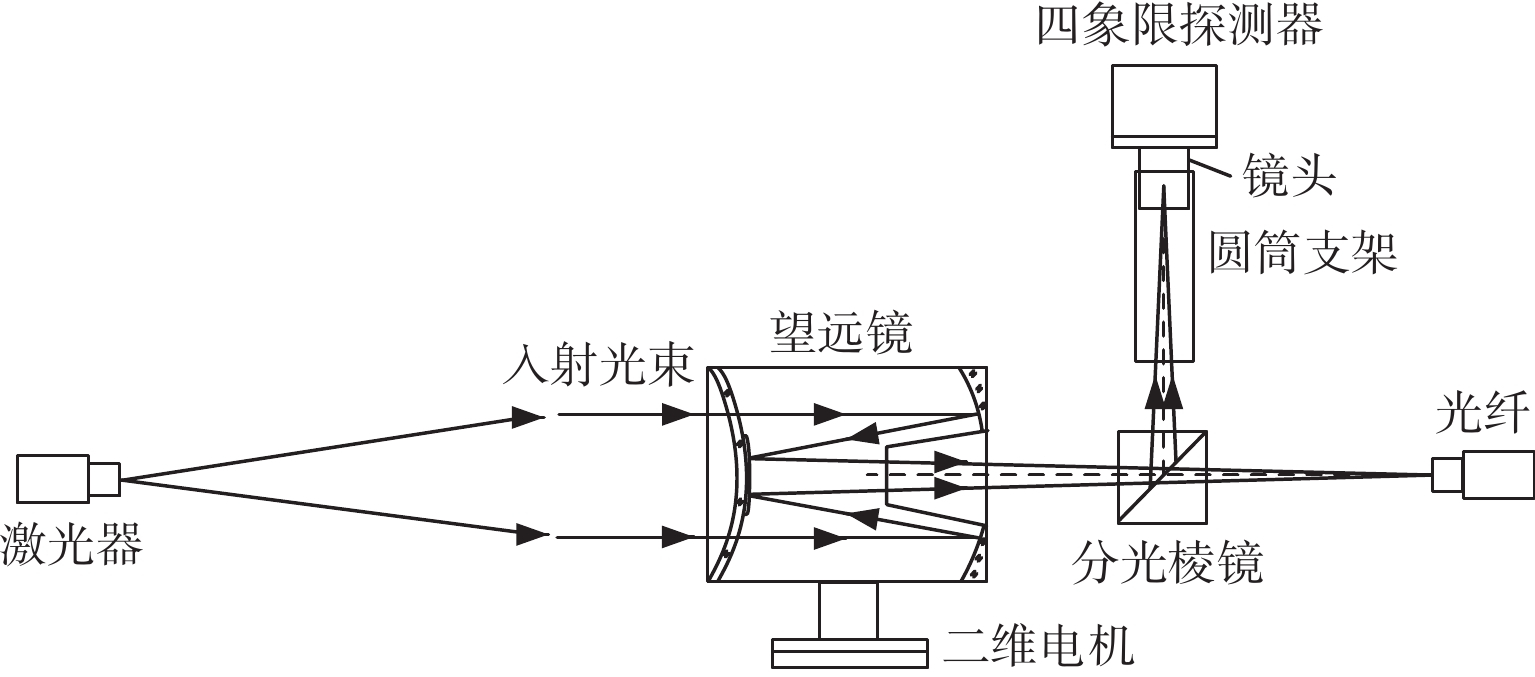

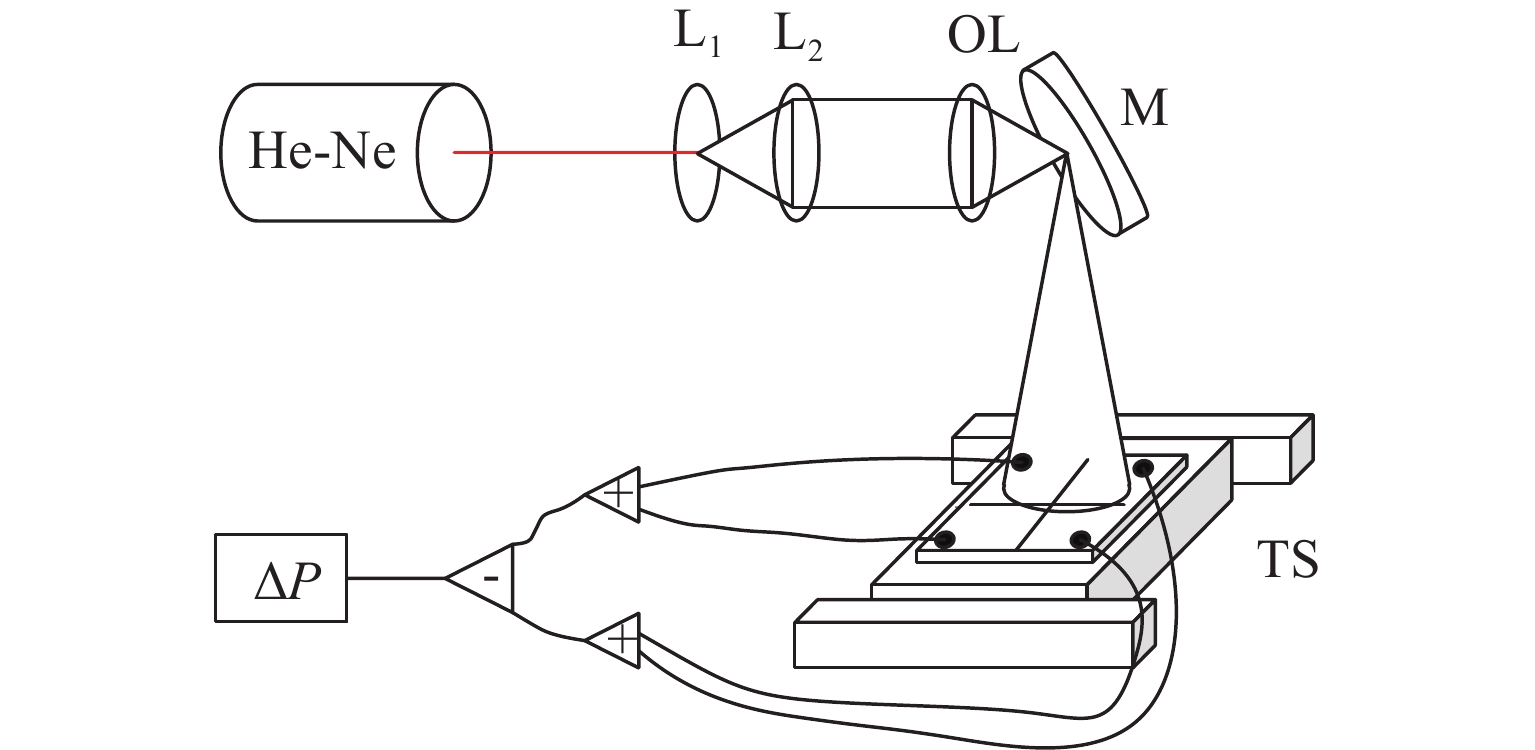

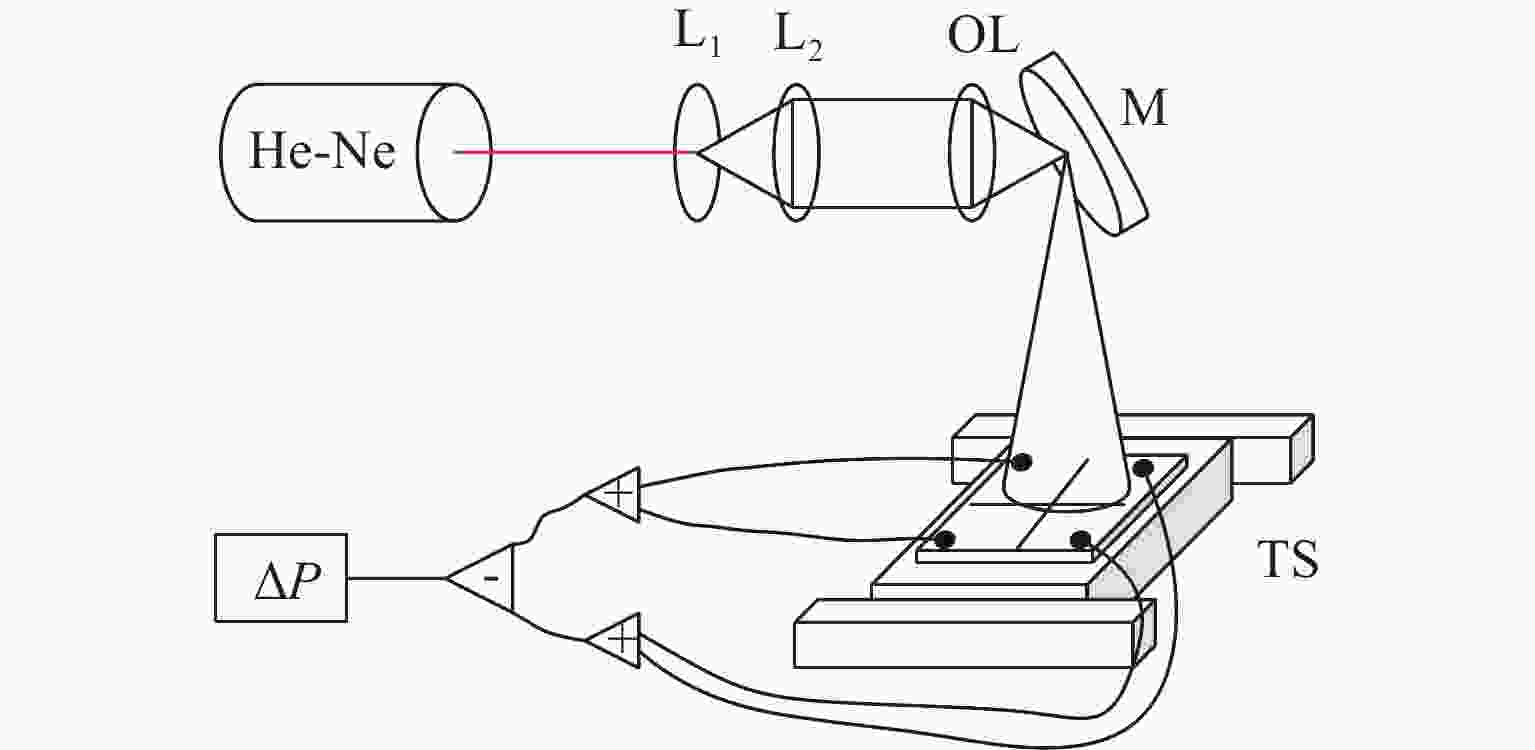

    图  12  实验装置图[22]

    Fig.  12  Schematic diagram of experimental device

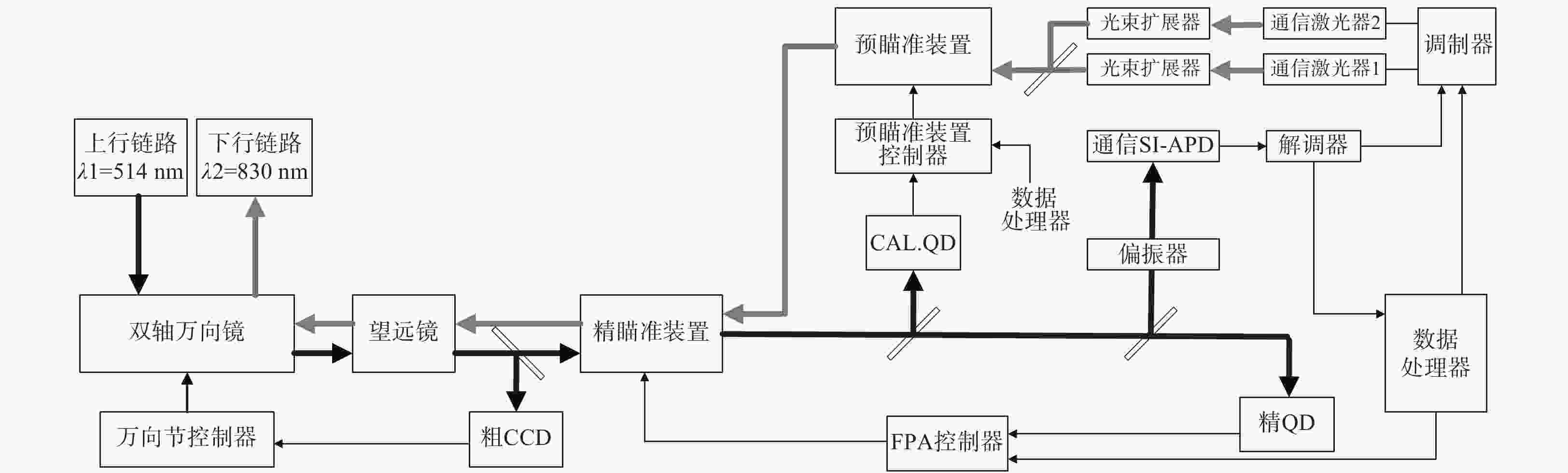

    图  13  SLT的基本框图[23]

    Fig.  13  Basic block diagram of SLT

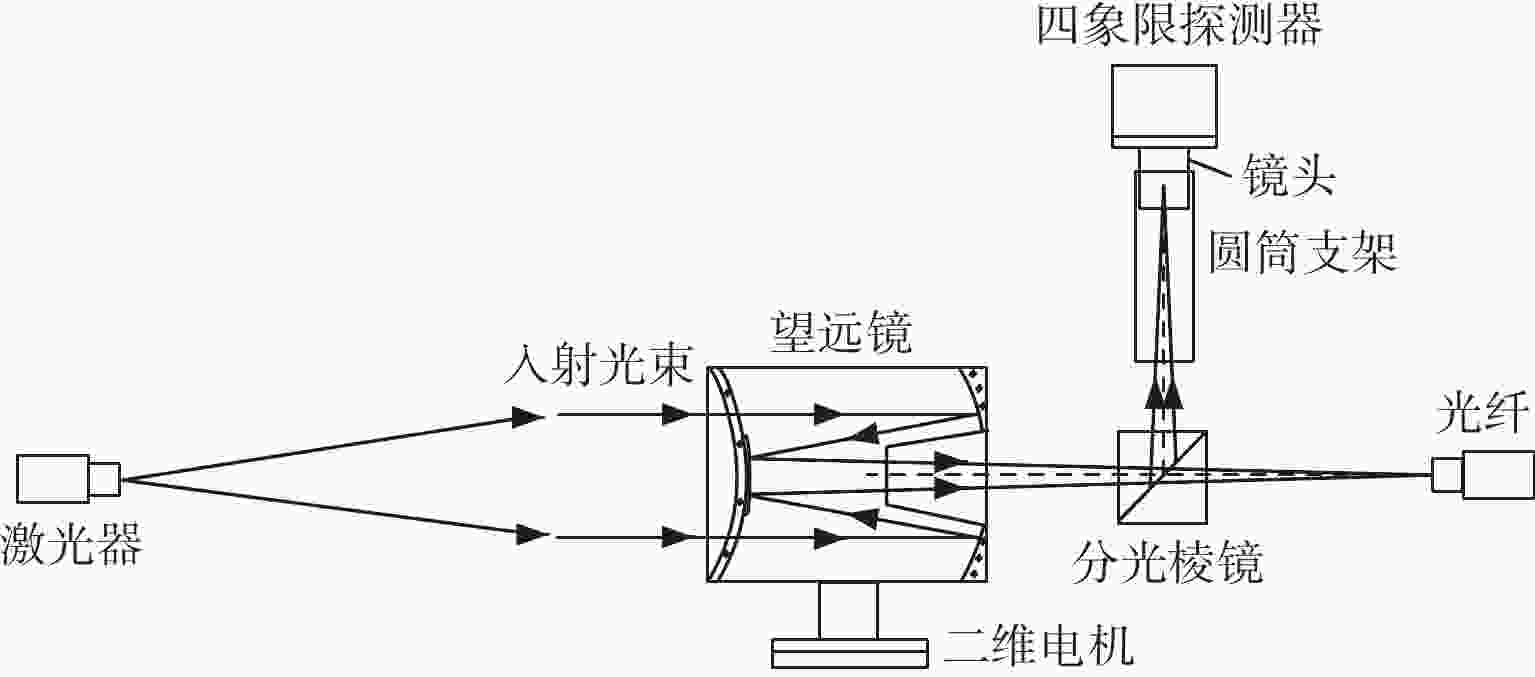

    图  14  LLST光路图[28]

    Fig.  14  Optical path diagram of LLST

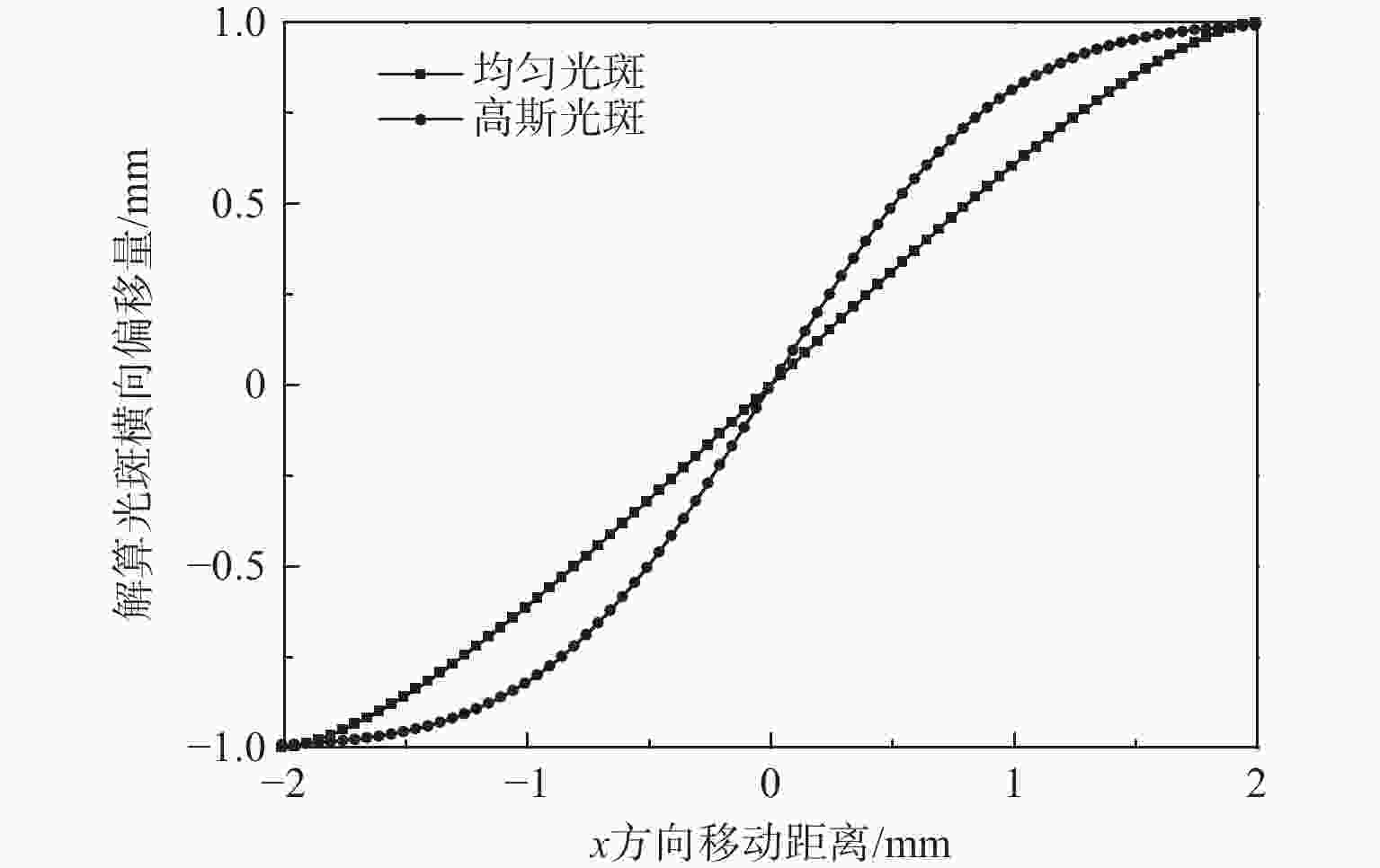

    图  15  不同光斑模式下的QD输出值[36]

    Fig.  15  QD output values under different spot modes

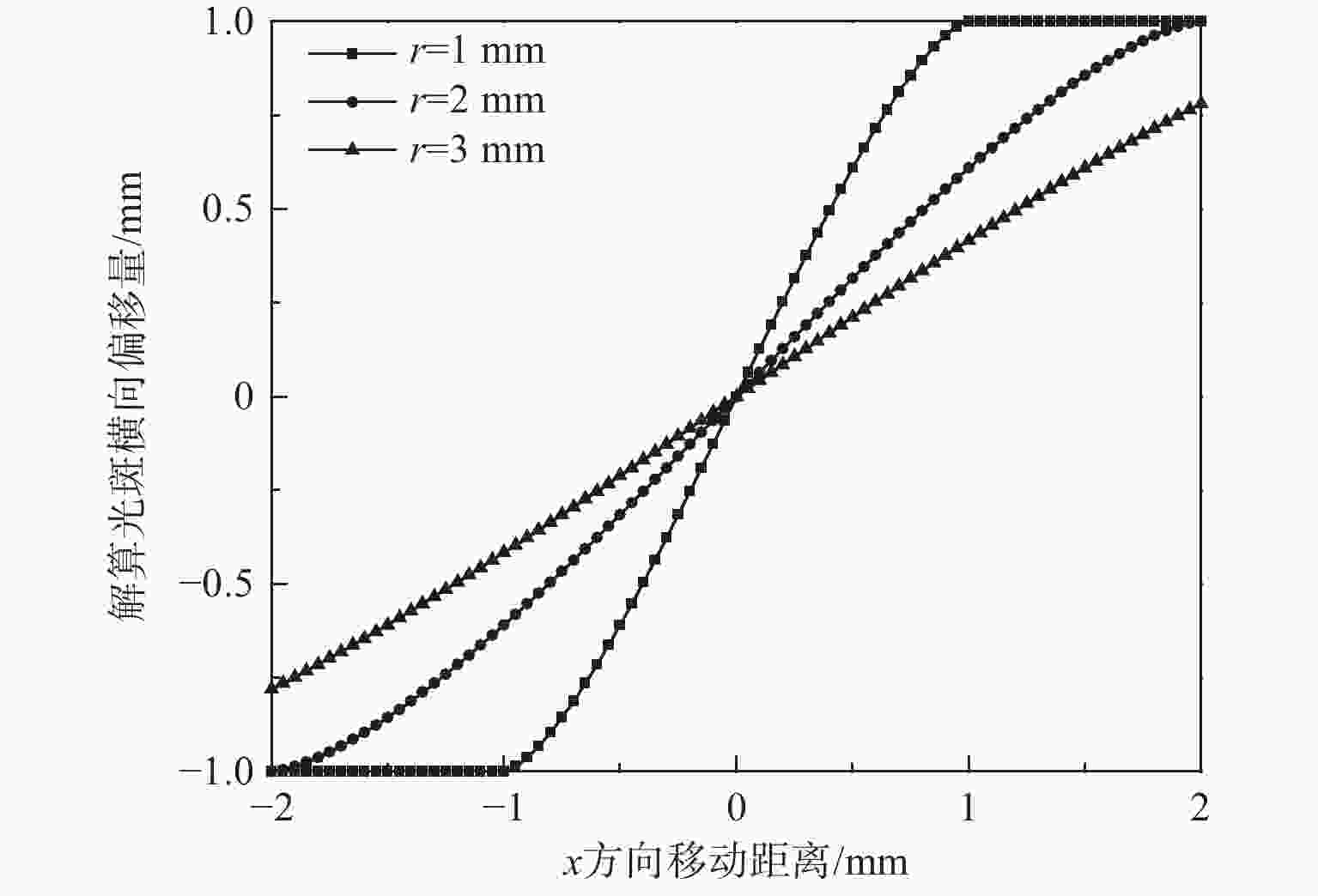

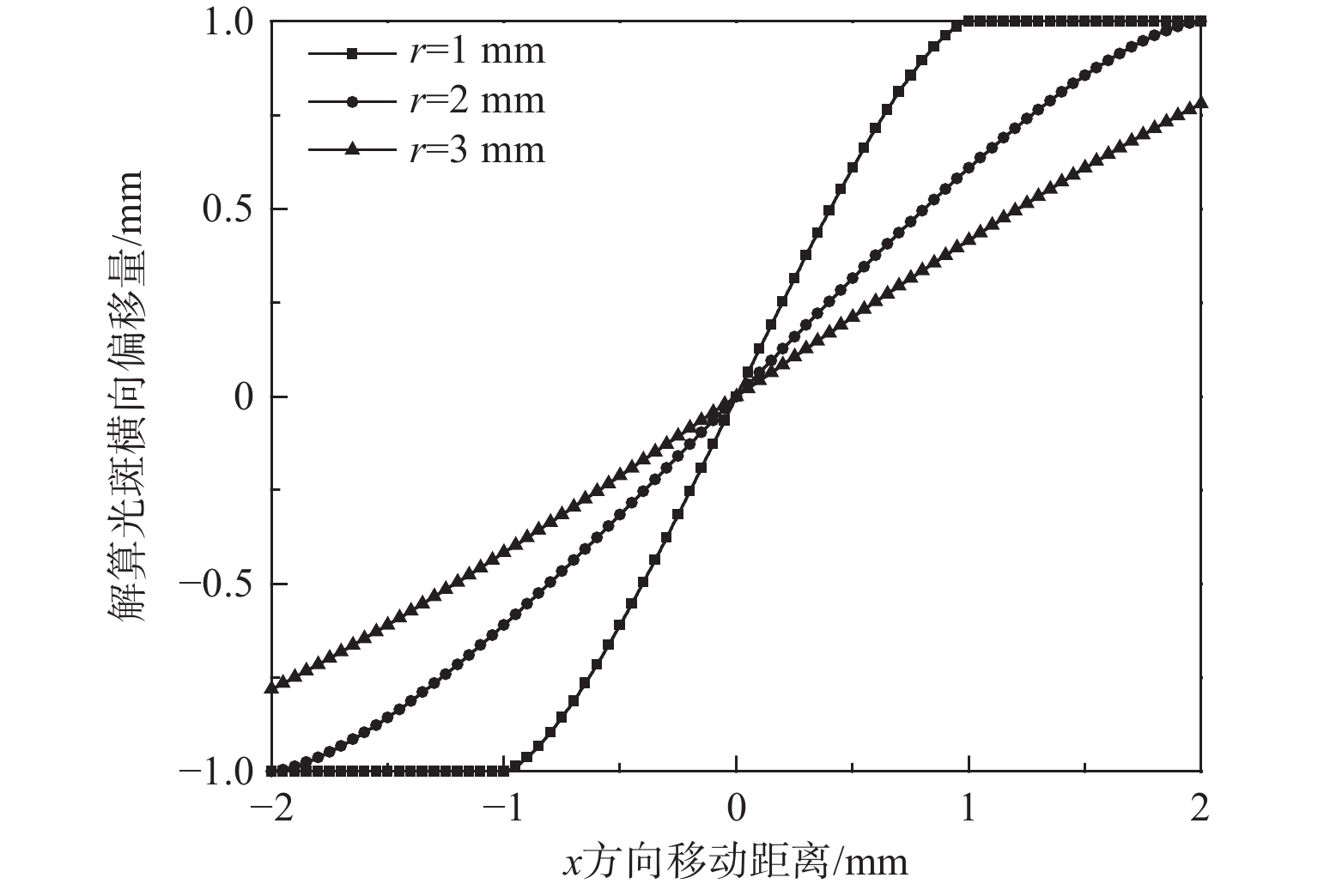

    图  16  不同光斑半径下的QD输出值[36]

    Fig.  16  QD output values under different spot radius

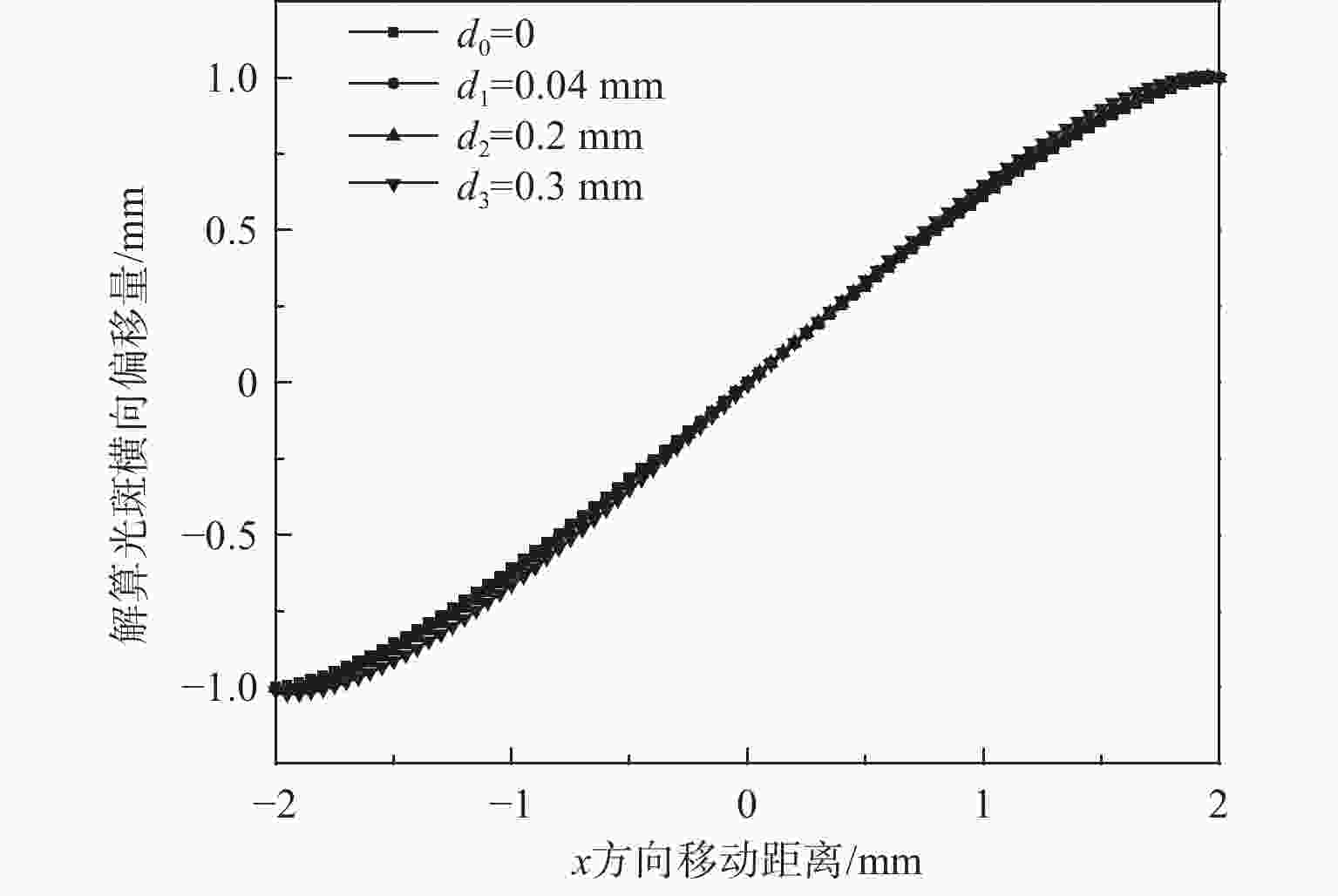

    图  17  不同死区宽度下的QD输出值[36]

    Fig.  17  QD output values under different deadband widths

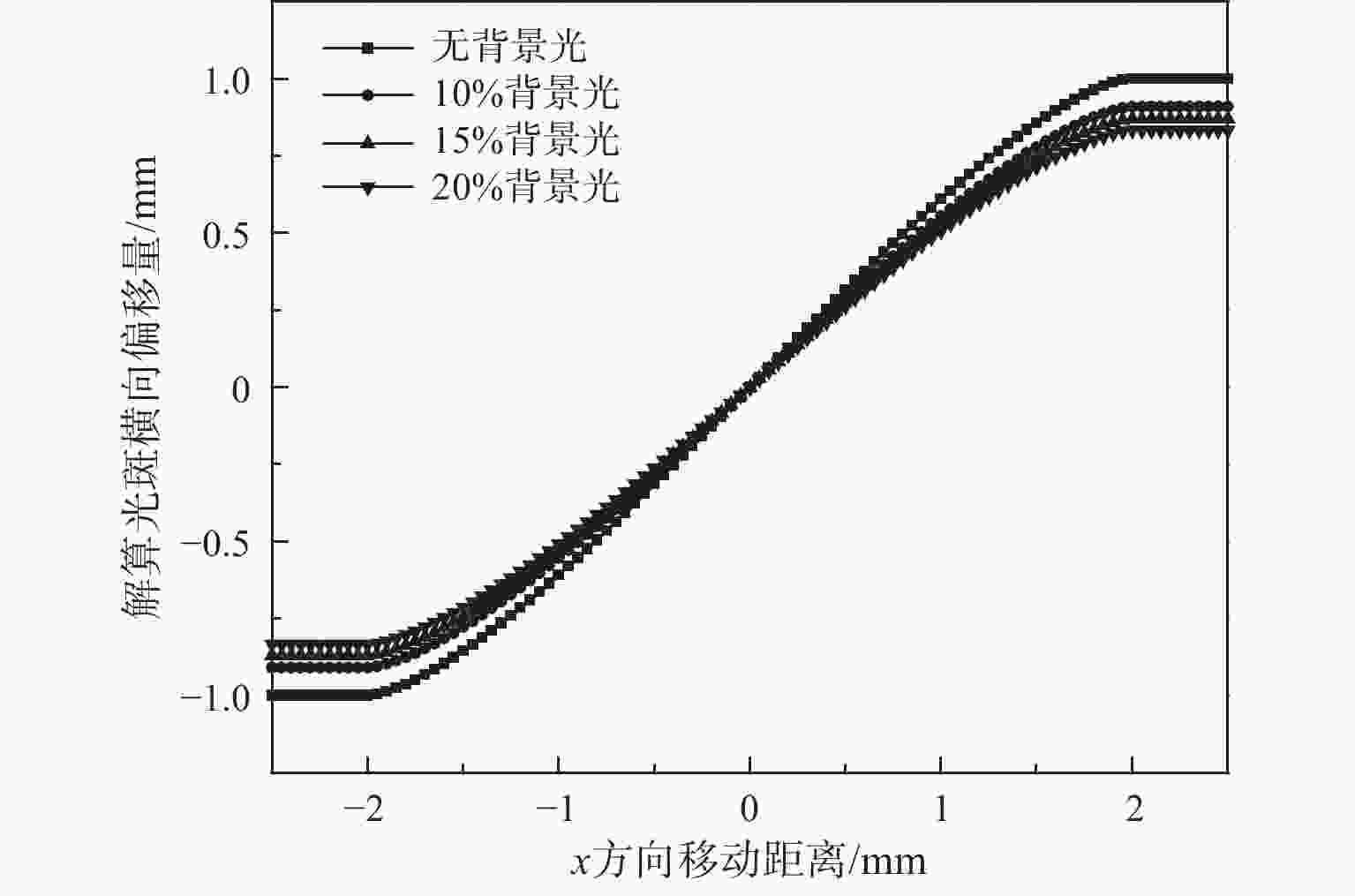

    图  18  不同比例背景光下的QD输出值[33]

    Fig.  18  QD output values under different scales of background light

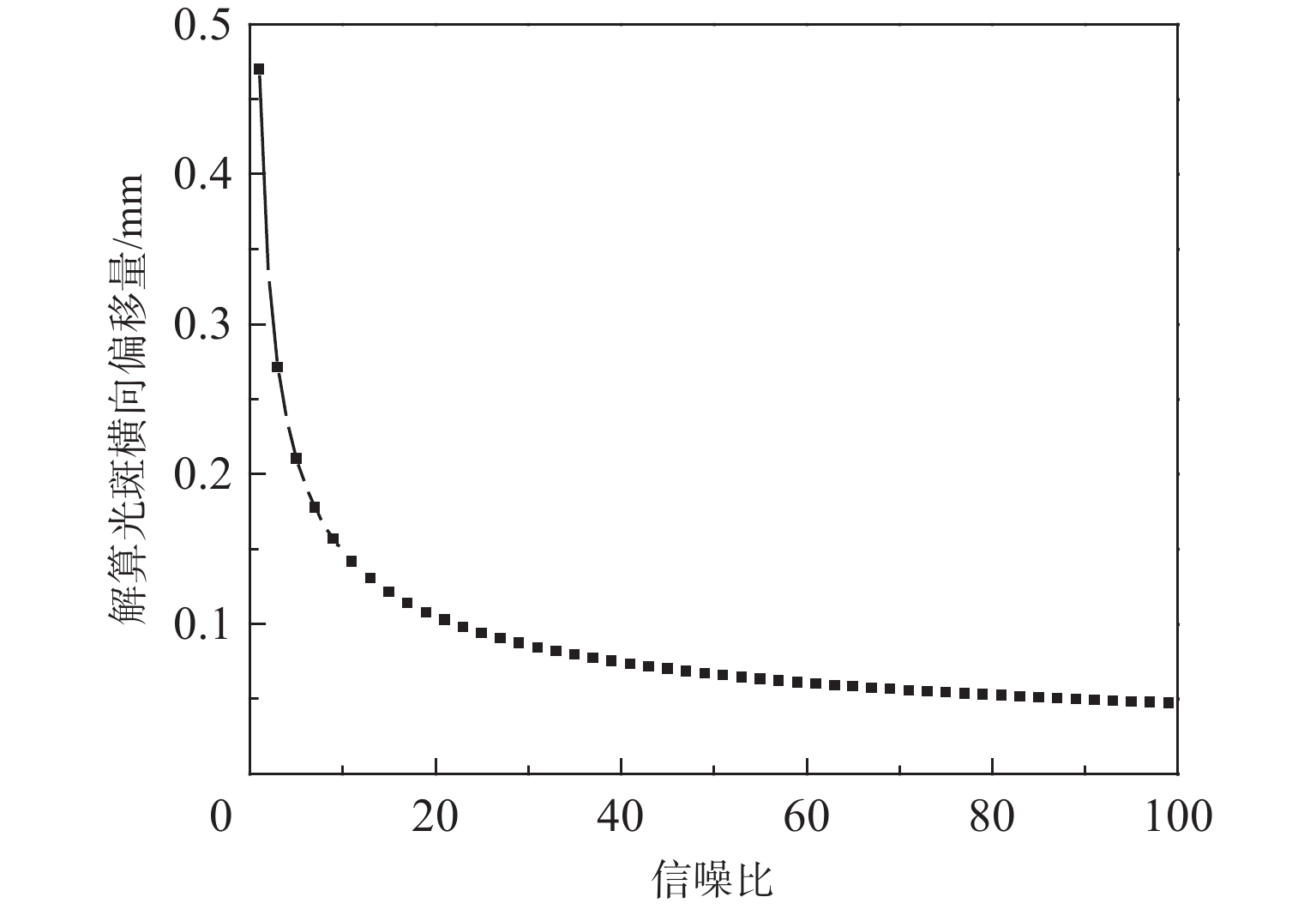

    图  19  不同系统信噪比下光斑位置标准差的变化曲线[28]

    Fig.  19  Variation curve of standard deviation of spot position under different SNR

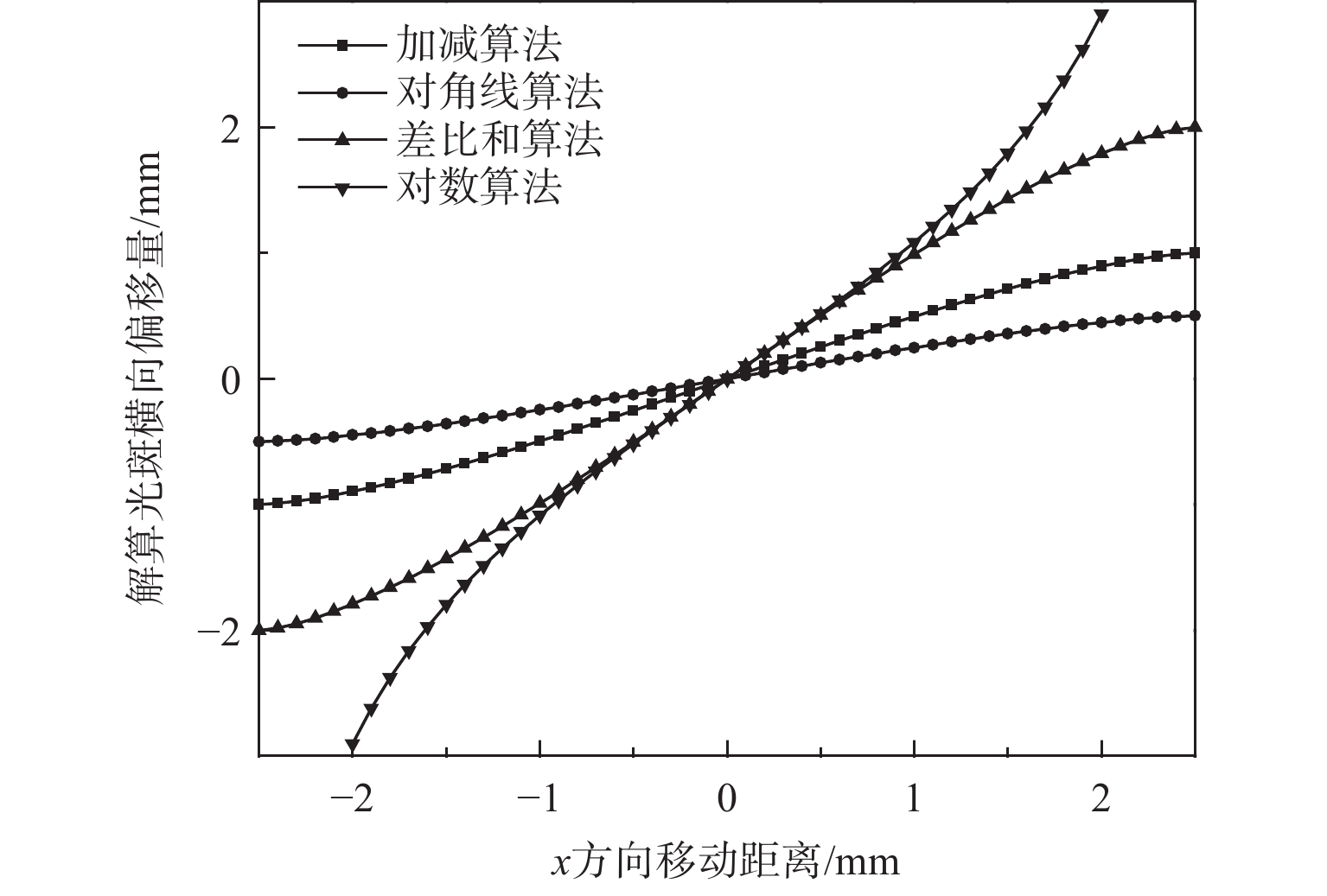

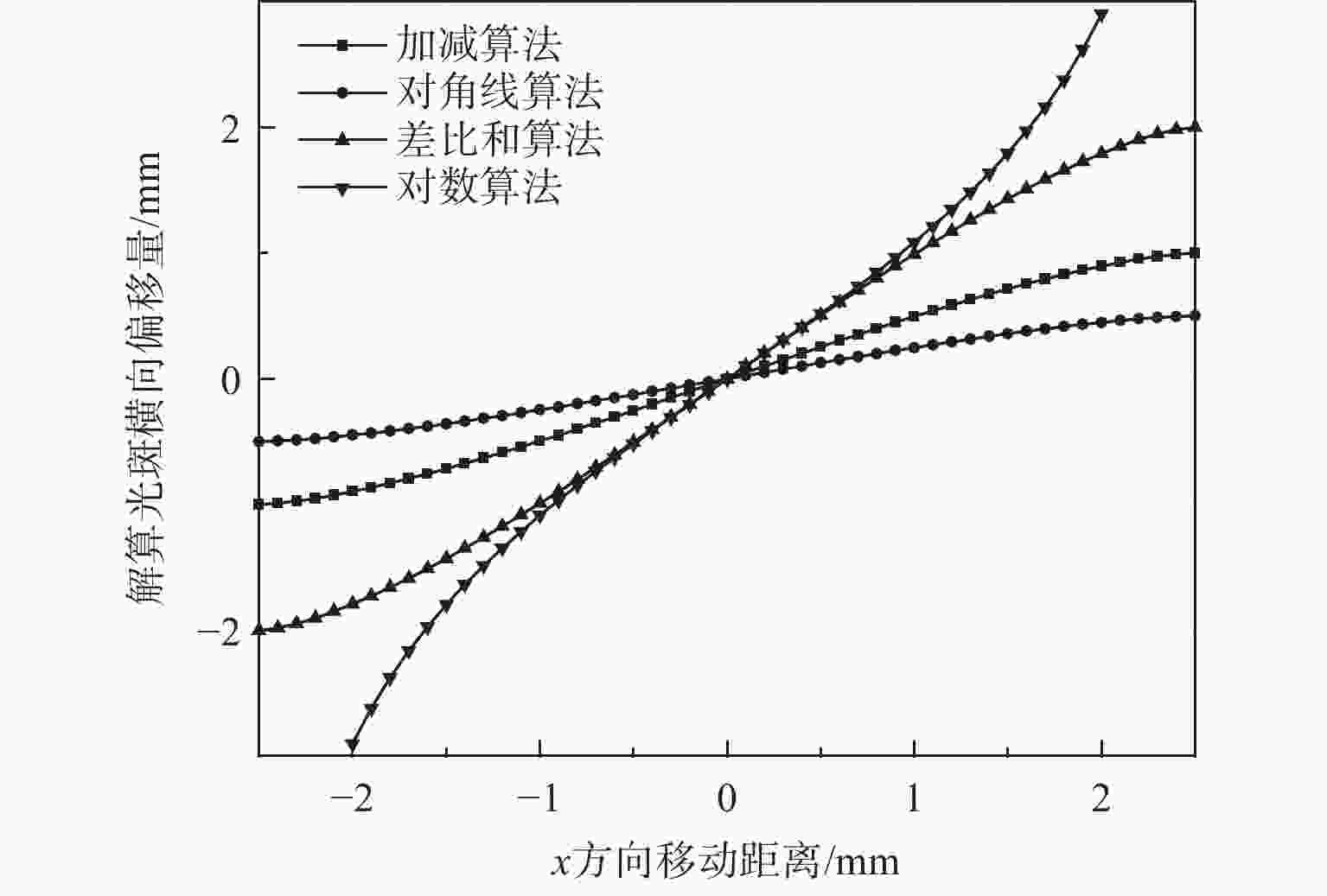

    图  20  不同定位算法下的仿真对比

    Fig.  20  Simulation comparison under different positioning algorithms

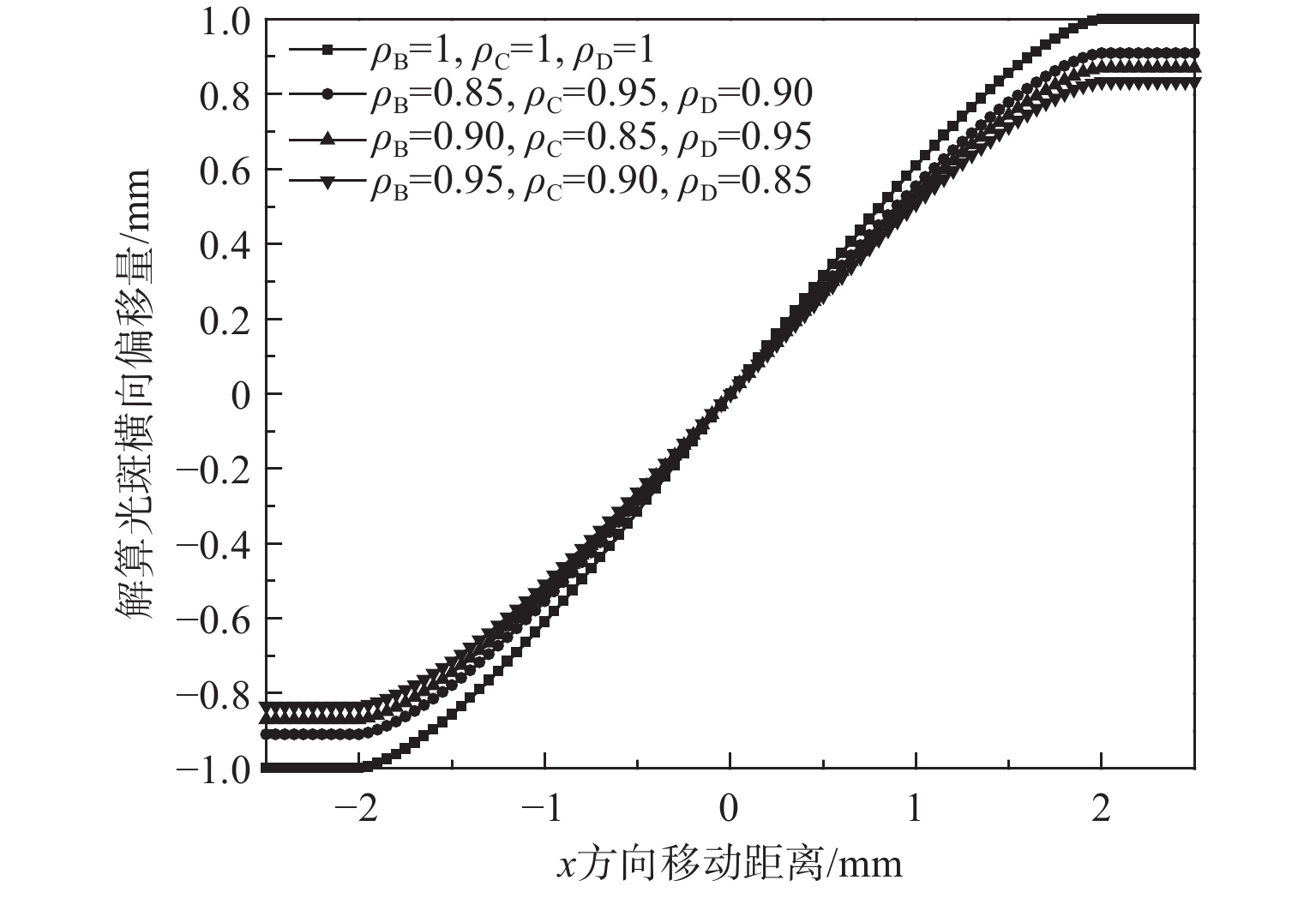

    图  21  各象限响应均匀度不同时对QD输出的影响[33]

    Fig.  21  Effect of different quadrant response uniformity on QD output

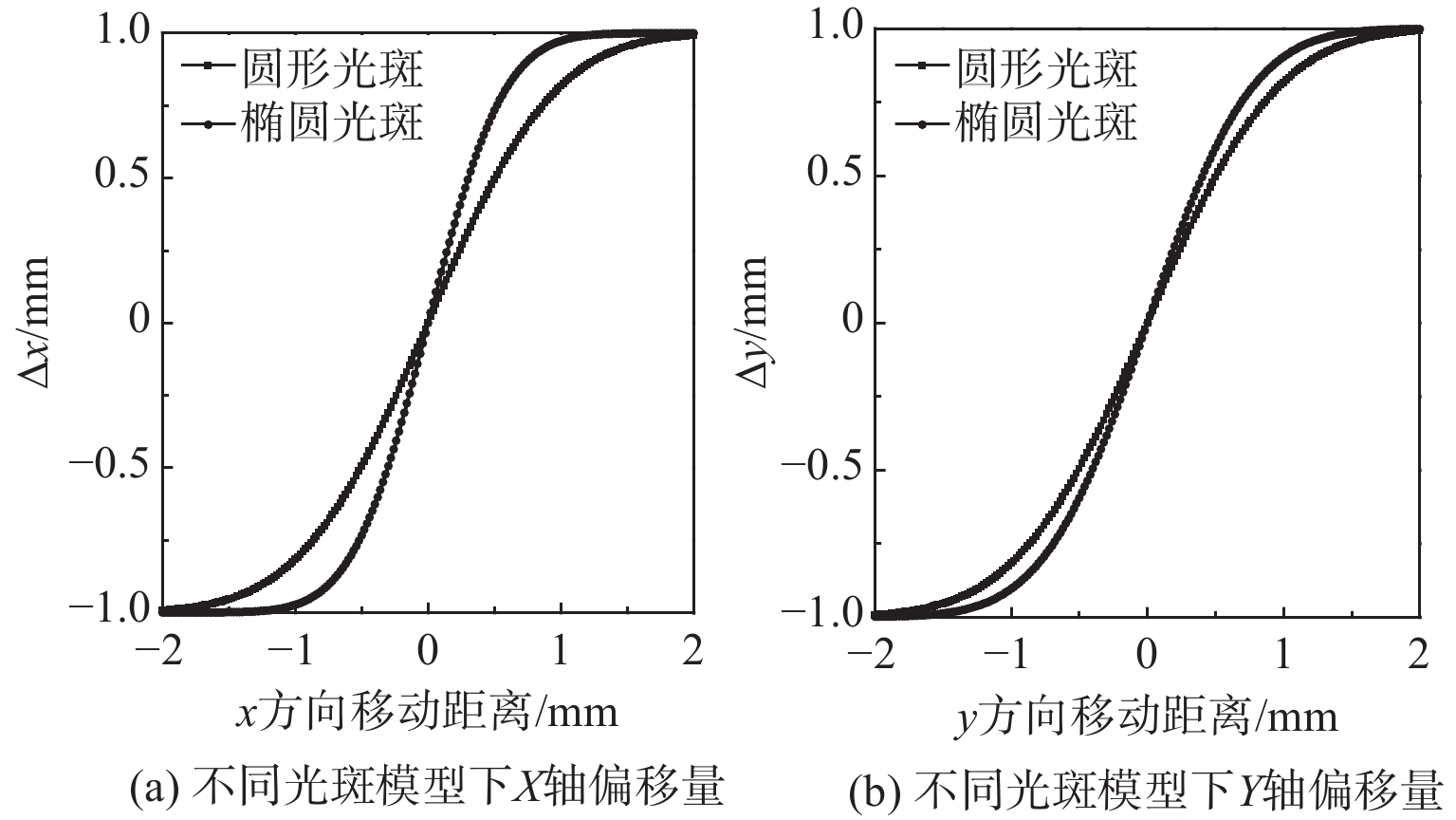

    图  22  不同光斑模型下XY轴偏移量[34]

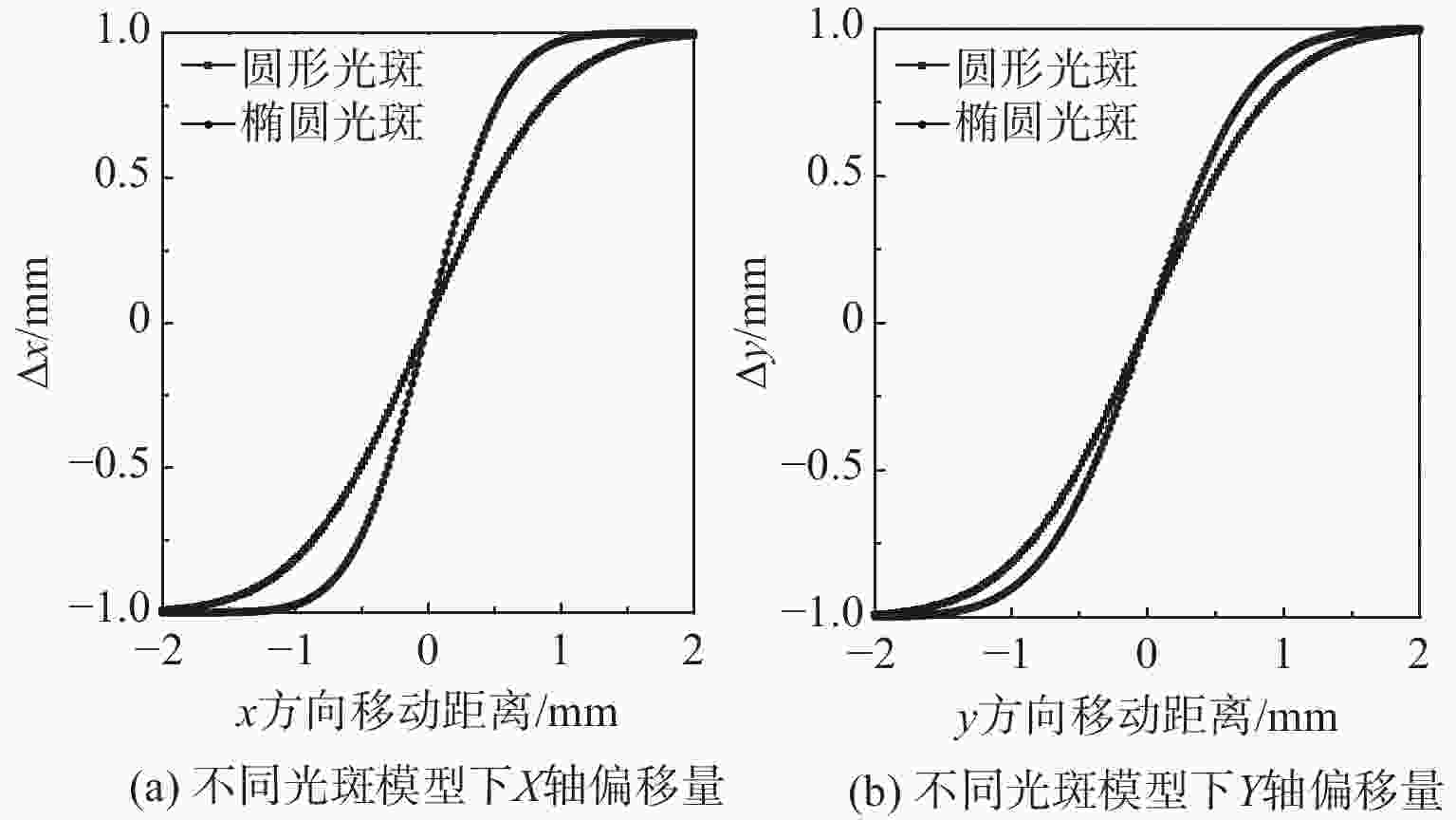

    Fig.  22  Offset of X and Y axis under different spot models

    图  23  光束对准检测系统结构[34]

    Fig.  23  Structure diagram of beam-alignment detection system

    图  24  缺失光斑检测图[34]

    Fig.  24  Missing spot detection image

    图  25  完整光斑检测图[34]

    Fig.  25  Complete spot detection image

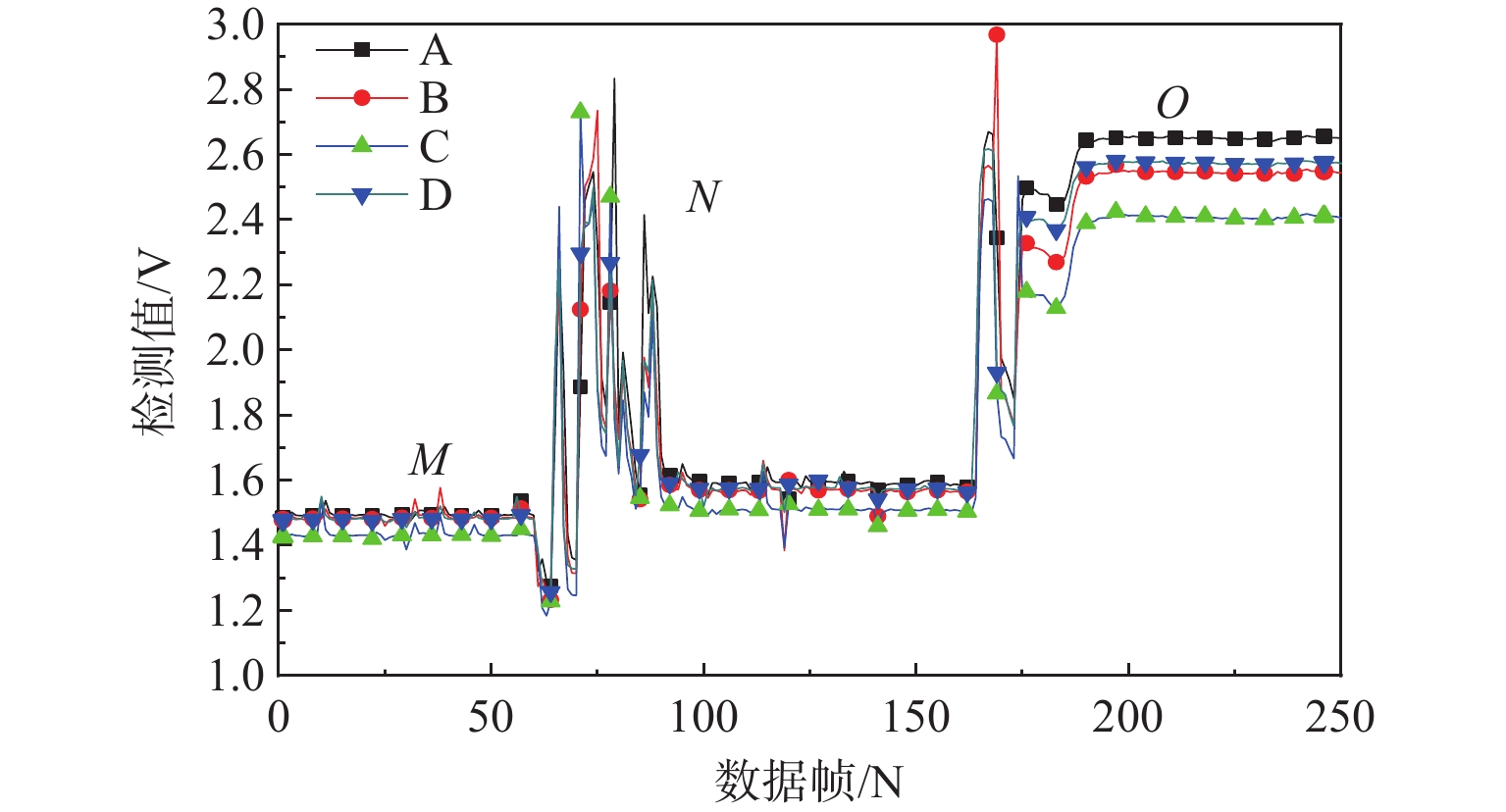

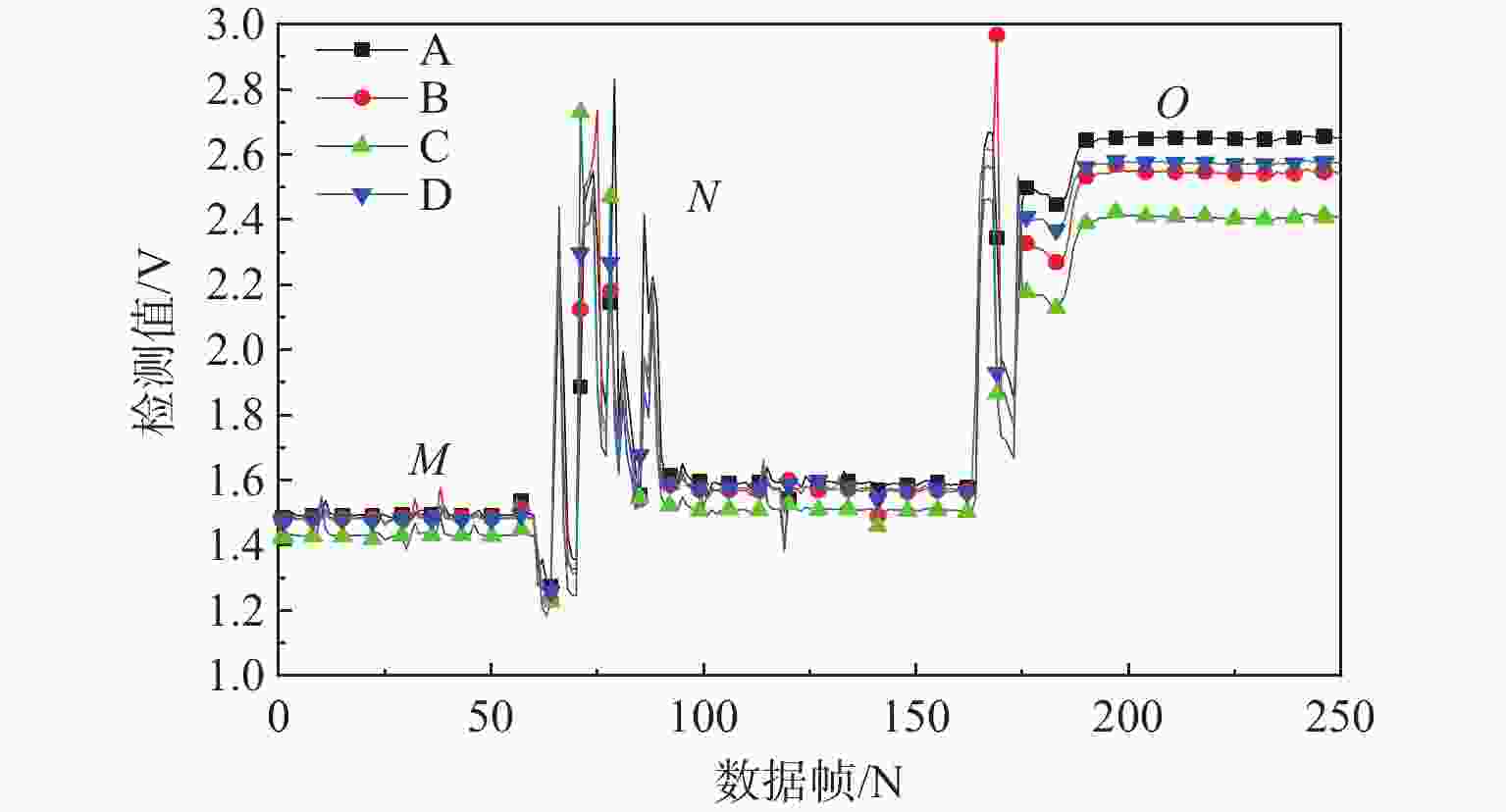

    图  26  调节过程QD输出图[34]

    Fig.  26  QD output diagram during adjustment process

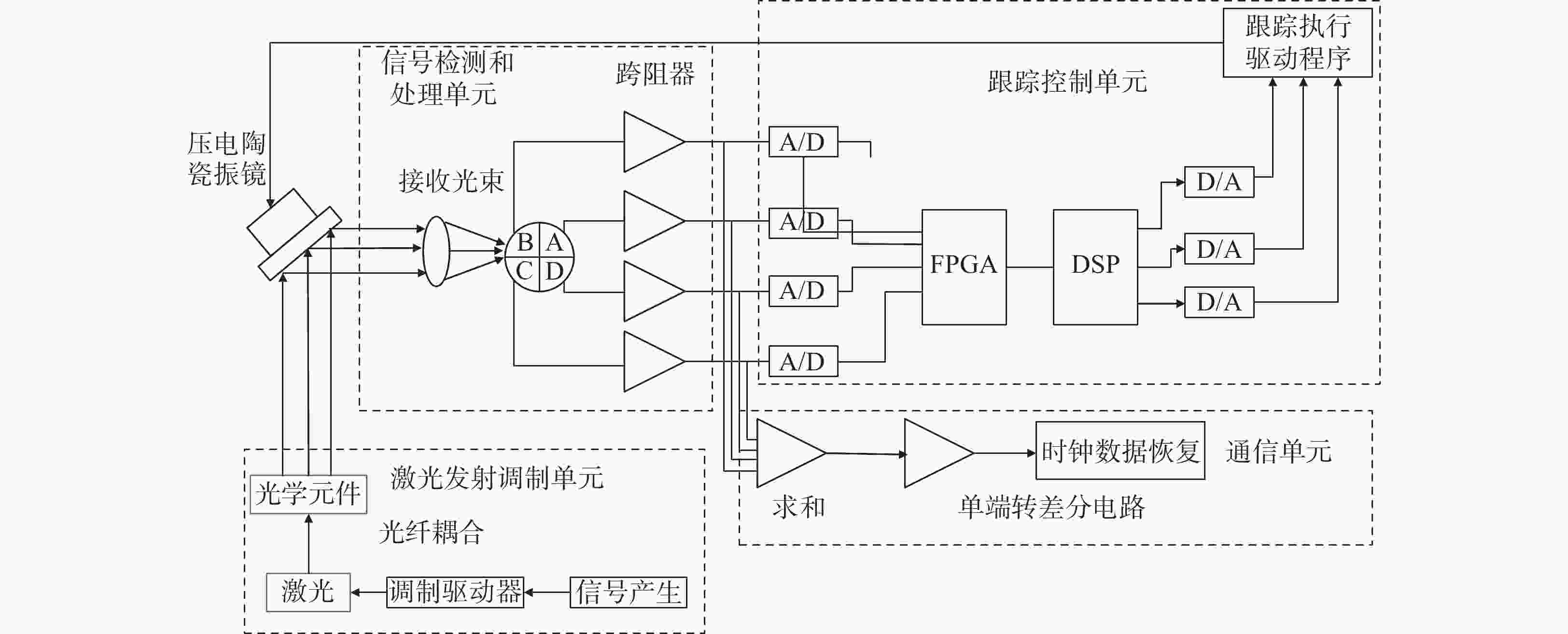

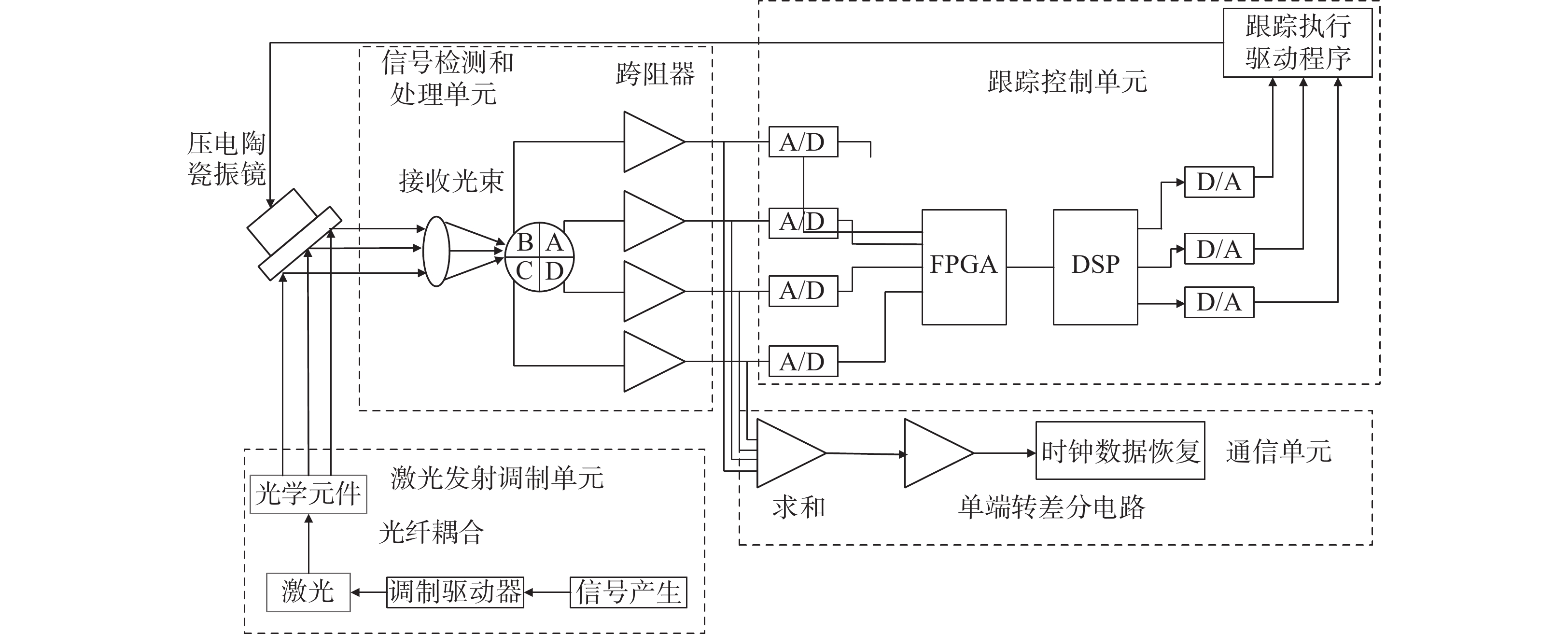

    图  27  跟踪与通信复合探测系统[46]

    Fig.  27  Tracking and communication composite detection system

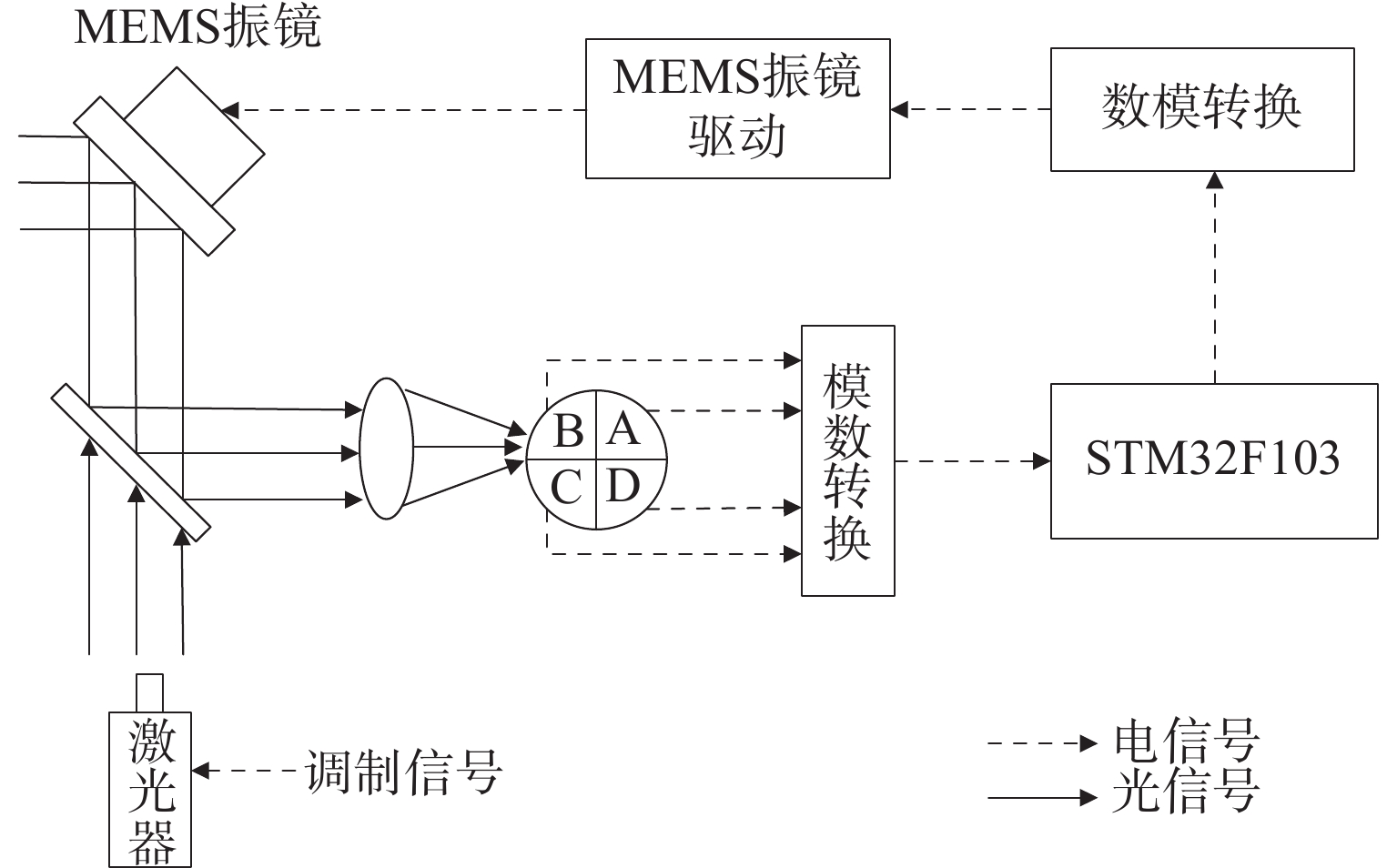

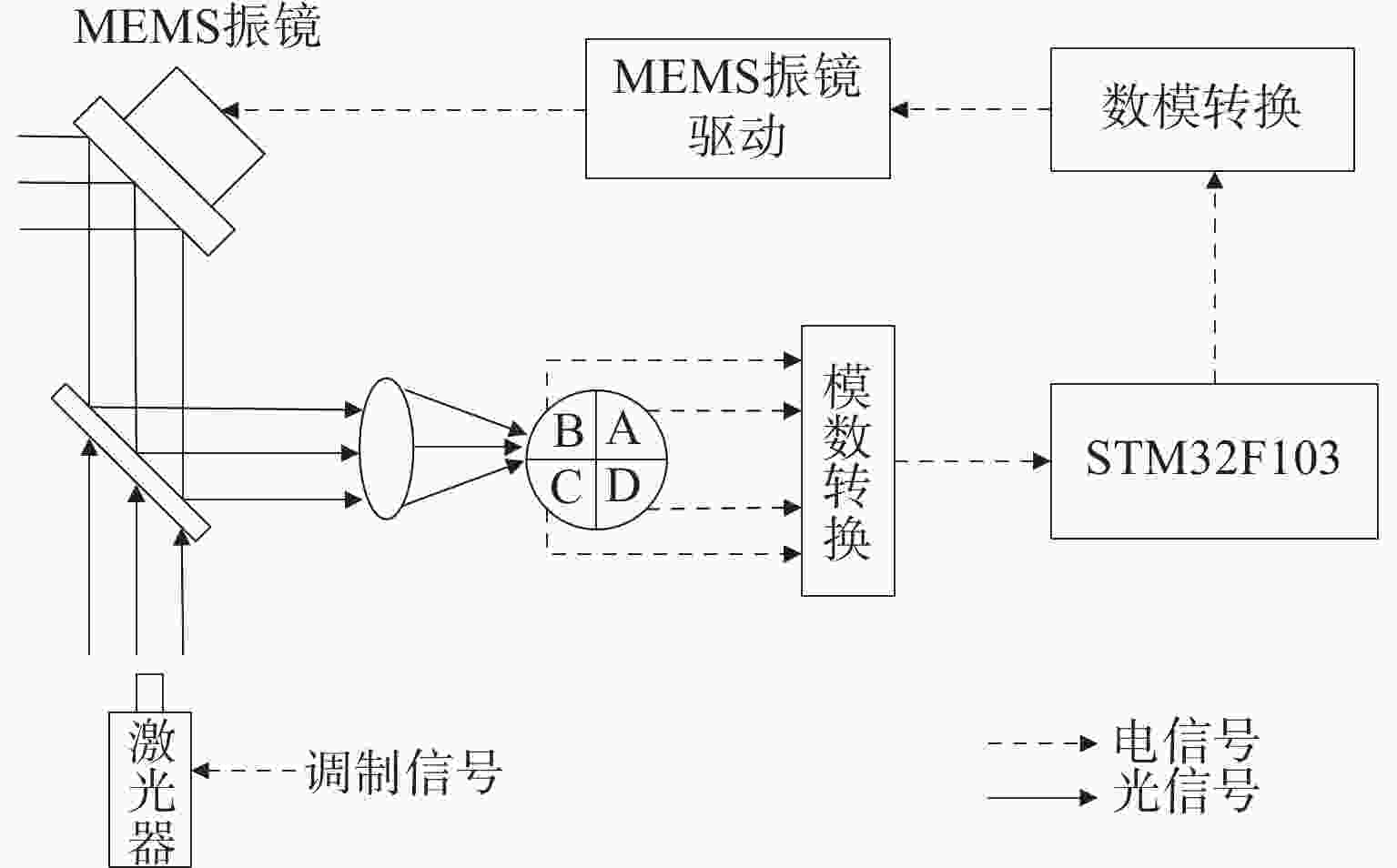

    图  28  微纳激光通信终端系统结构示意图[53]

    Fig.  28  Structure diagram of micro nano laser communication terminal system

    表  1  三种探测器的对比[13]

    Table  1  Comparison of three detectors

    参数QDCCDPSD
    性能可靠可靠可靠
    驱动电路复杂较复杂简单
    信号处理复杂复杂简单
    噪声处理外电路窄带滤波复杂外电路窄带滤波
    响应时间<4 ns1 μs左右0.5 μs左右
    极限分辨率0.01 μm像元间距(几微米)0.3 μs
    下载: 导出CSV

    表  2  光斑检测影响因素研究进展总结

    Table  2  Summary of research progress on influencing factors of spot detection

    年份研究人员研究内容
    2007徐代升提出了光斑大小优化设计,改善系统性能
    2010赵馨等人研究了QD的各种性能及外部环境对其性能的影响,并进行了实验测试
    2015张辉等人推导出高斯光斑模型下位置检测精度的数学模型
    2016张骏等人对QD定位误差的影响进行了研究,并提出了相应的修正方法
    2017李世艳提出了一种光斑检测方法,减小了检测误差
    2021李树德等人研究噪声因素对QD光斑位置定位的影响
    2022刁宽等人建立了光斑半径、能量分布和探测器死区等影响因素下QD输出与光斑位置的表征方程
    下载: 导出CSV

    表  3  光斑检测算法研究进展总结

    Table  3  Summary of research progress on spot detection algorithms

    年份研究人员研究内容
    2009陈勇等人提出将插值法和对角线算法相结合的一种改进算法,将测角误差控制在0.1°之内
    2012司栋森等人提出了增益可调的快速跟踪定位算法,将跟踪精度提高到0.049 7 mm
    2012陈梦苇等人对各种光斑模型讨论了和差、对角线、Δ/Σ和对数四种算法,并进行了比较
    2015WU J B
    等人
    提出了Composite拟合算法,提高了测量精度
    2017郭小康等人简化了二段式多项式拟合算法,将精度提高到10−4 mm数量级
    2021苟晔鹏等人提出了基于无穷积分拟合方法的改进算法,提高了灵敏度
    2021秦立存等人改进高斯光斑模型下的定位算法,均方根误差减小60.4%
    下载: 导出CSV

    表  4  光斑检测系统研究进展总结

    Table  4  Summary of research progress on spot detection systems

    年份研究人员研究内容
    2003王岱等人设计了双轴跟踪控制试验演示系统
    2013ZHANG W
    等人
    研制了一种利用QD做光斑检测探测器的小型激光跟踪系统
    2017范新坤等人提出了使用雪崩二极管型QD实现跟踪与通信复用的方案,角分辨率为0.8 μrad
    2018林鑫等人设计了一套基于QD的激光束二维扫描跟踪系统,并进行了测试
    2019刘思鸣等人提出了一种基于QD的激光跟踪系统,跟踪误差约为0.1%
    2019王睿扬等人设计数字跟踪通信复合接收机,探测灵敏度为−30 dBm
    2020王淋正等人提出了一种中心开孔型四象限探测器光纤定位技术,并设计了定位算法
    2021KE X Z等人设计了一种新型机载激光通信结构
    2022陈韵等人设计微纳激光通信终端,跟踪误差为84 μrad
    下载: 导出CSV

    表  5  光斑检测算法总结

    Table  5  Summary of spot detection algorithms

    函数名称优点缺点
    加减算法灵敏度和线性范围较为平衡线性范围较窄
    对角线算法线性范围较宽灵敏度较低
    差比和算法灵敏度高线性范围窄
    对数算法线性范围宽灵敏度较差
    函数拟合法简单、易实现拟合效果取决于拟合函数
    归一化中心法公式简单、计算速度快、对硬件要求较低使用范围小
    多项式拟合法检测范围较大、检测精度较高公式复杂、对硬件要求高
    无穷积分法检测精度较高未考虑探测器死区和大小,检测误差较高
    Boltzmann函数拟
    合法
    检测精度较高检测误差较高
    Composite拟合算法检测误差较低、检测精度高精度难以再次提升
    无穷积分拟合改进算法检测精度高、计算量小,对硬件要求较低反求导过程较为困难,适应范围小
    下载: 导出CSV
